Jeep Wrangler Unlimited Hitch Install Guide: Best 2 Inch Tow Receiver Kits

A Jeep Wrangler Unlimited Hitch Install Guide helps you choose and install a 2 inch tow receiver on a 4-door Wrangler. It matters because the right hitch, wiring, torque, and tongue weight keep your trailer, bike rack, or cargo carrier safer on the road.

If you own a Jeep Wrangler Unlimited, you already know the problem. You want to tow a small trailer, mount a bike rack, carry recovery gear, or pull a light boat, but the rear bumper area can get confusing fast.

I have seen plenty of Jeep owners buy a 2 inch receiver kit that “fits Wrangler” but not their exact year, bumper, or wiring setup. That mistake can waste money and create a weak towing setup.

This Jeep Wrangler Unlimited Hitch Install Guide will show you how to pick the best 2 inch tow receiver kit, what tools you need, how to install it, what wiring matters, and when a pro should handle the job.

Pain Points: Jeep Owners Face Before Installing a Hitch

Buying the Wrong Hitch for the Wrong Wrangler

The most common mistake is treating every Wrangler the same. A JK Unlimited from 2007–2018 and a JL Unlimited from 2018 onward can use different hitch kits, wiring paths, and bumper hardware.

This happens because product pages often say “Jeep Wrangler” in big text, then hide the year and bumper details lower down.

The fix is simple. Match the hitch to your exact model year, body style, bumper type, and trim. A 2016 Wrangler Unlimited Sport and a 2024 Wrangler Unlimited Rubicon may both use a 2 inch receiver, but the fit details are not always the same.

Key takeaway: fitment matters more than brand name.

Confusing Hitch Rating With Jeep Towing Capacity

A hitch may be rated for 3,500 pounds, 4,500 pounds, or more, but that does not mean your Jeep can safely tow that much. The vehicle rating, trailer rating, hitch rating, ball mount rating, and wiring setup all matter.

I once saw a Wrangler owner install a stronger aftermarket hitch and assume the Jeep could tow like a full-size pickup. That is how people overload brakes, rear suspension, tyres, and transmissions.

Your safe limit is the lowest rated part in the setup. If your Jeep, hitch, ball mount, or trailer coupler has a lower number, that lower number wins.

“My advice is to install a hitch receiver that’s heavy-duty enough to match your vehicle’s GTW and tongue-weight spec.” — Mike Allen, Popular Mechanics

Skipping Wiring and Safety Checks

Some owners install the receiver and stop there. That may be fine for a bike rack, but not for towing a trailer on public roads.

A trailer needs working tail lights, brake lights, and turn signals. Many trailers also need safety chains, reflectors, and brakes depending on country, state, province, and trailer weight.

The practical fix is to plan the receiver and wiring together. If you tow a small utility trailer, a 4-pin wiring harness may work. If you tow a camper or trailer with electric brakes, you may need a 7-way plug and brake controller.

Best 2 Inch Tow Receiver Kits for Jeep Wrangler Unlimited

A good 2 inch receiver for a Jeep Wrangler Unlimited should bolt to factory mounting points, include strong hardware, sit cleanly under the bumper, and match your real towing needs.

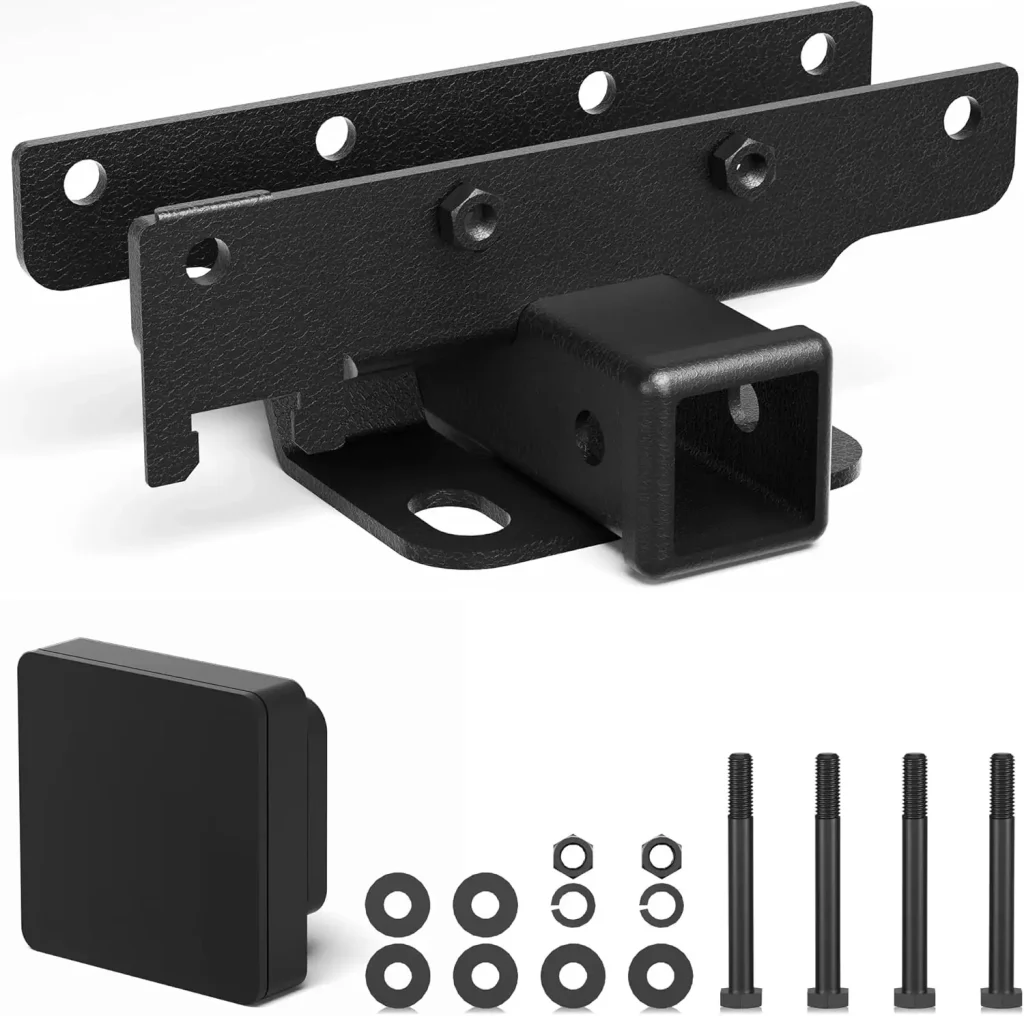

1. Mopar 2 Inch Receiver Hitch Kit

The Mopar kit is a strong choice for owners who want an OEM-style setup. It fits many JL Wrangler models and keeps the rear end looking factory.

I like this option for newer Jeep owners who want a simple, clean install without a lot of guesswork. It usually costs more than budget kits, but the fit and finish are often worth it.

Best for:

• 2018+ Wrangler JL Unlimited owners
• Drivers who want OEM fit
• Clean factory-style appearance
• Light trailer towing and hitch accessories

Typical cost range:

• USA: $100–$320 depending on kit contents
• UK: £120–£280 after import or specialist markup
• Canada: CAD $160–$420
• Australia: AUD $180–$500

Credit: Amazon

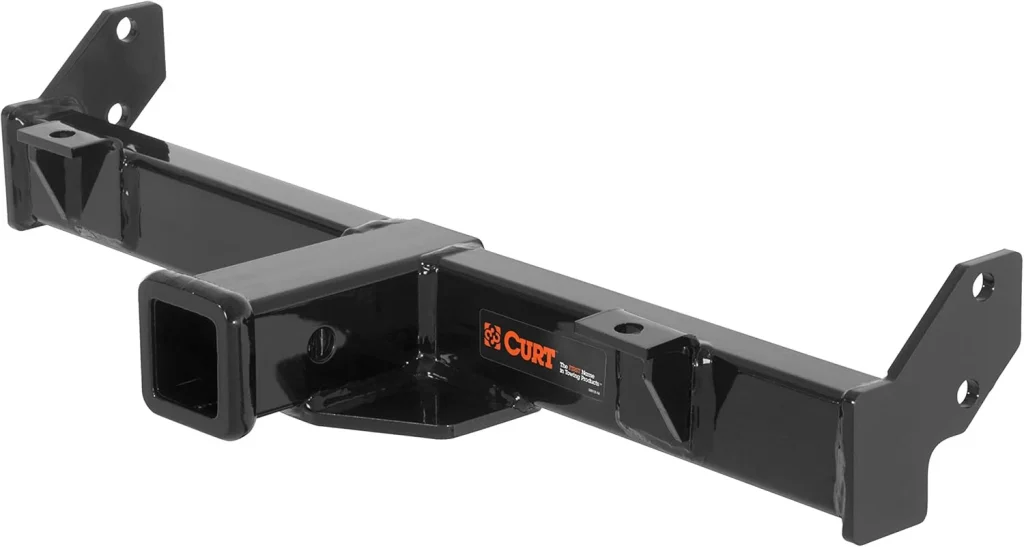

2. CURT 2 Inch Receiver Hitch

CURT is one of the most common aftermarket hitch choices for Wrangler owners. Their Jeep receiver hitches are usually powder-coated steel, easy to source, and priced well.

For many Jeep owners, CURT gives the best mix of cost, fit, and easy availability. I would consider it for daily drivers, weekend campers, and owners who want a proven bolt-on option.

Best for:

• JK and JL Wrangler Unlimited models, depending on part number
• DIY installation
• Bike racks, cargo trays, small trailers
• Owners who want broad parts support

Credit: Amazon

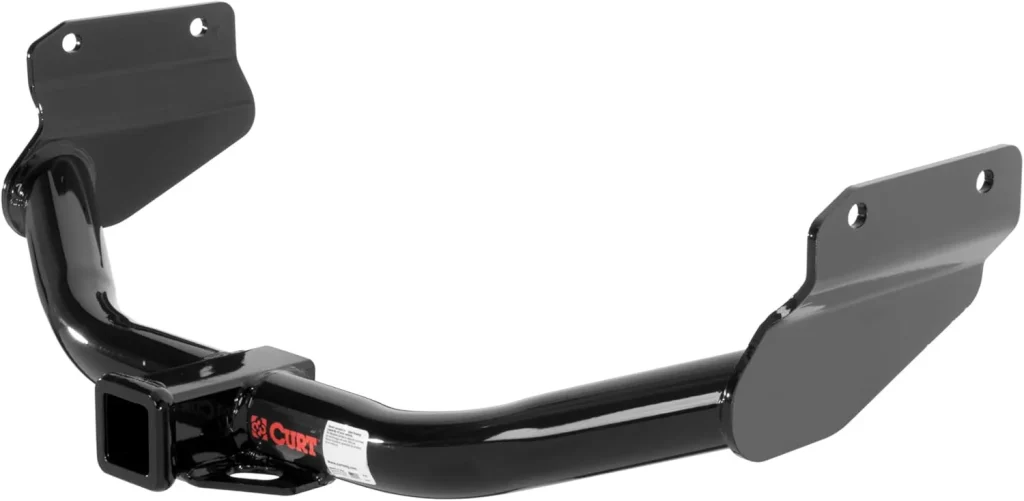

3. Quadratec Premium 2 Inch Receiver Hitch

Quadratec is popular in the Jeep community because they focus heavily on Jeep parts. Their receiver hitch kits often include Jeep-friendly fitment notes and may be sold with wiring options.

This is a smart pick if you are building a mild overland setup and want a kit sold by a Jeep-focused retailer. I have seen Wrangler owners choose Quadratec because the install guides and customer feedback are easier to understand than generic listings.

Best for:

• Jeep-focused buyers
• Wrangler Unlimited camping setups
• Owners who want optional wiring kits
• Clean rear fitment

Credit: Amazon

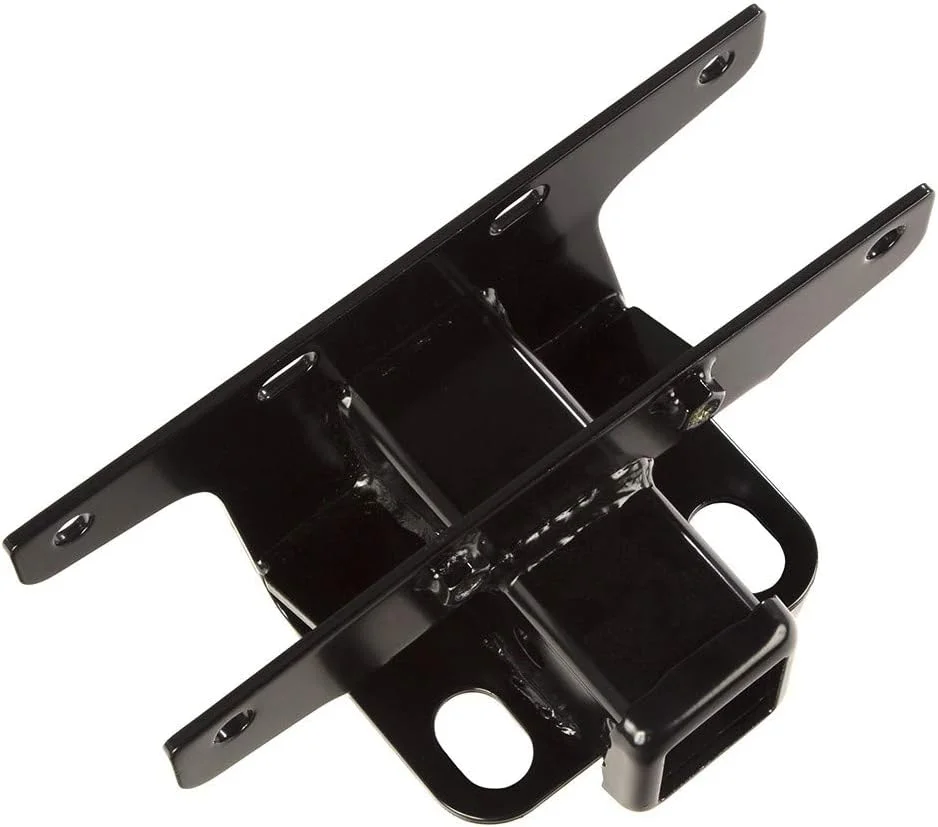

4. Rugged Ridge 2 Inch Receiver Hitch

Rugged Ridge is common among JK Wrangler owners. The brand fits well with Jeeps that already have off-road parts, recovery gear, or aftermarket bumpers.

This can be a good pick if you own a 2007–2018 JK Unlimited and want a basic rear receiver for towing light loads or carrying a hitch-mounted accessory.

Best for:

• JK Wrangler Unlimited models
• Simple bolt-on receiver installs
• Jeep owners already using Rugged Ridge parts
• Budget-friendly towing setups

Credit: Amazon

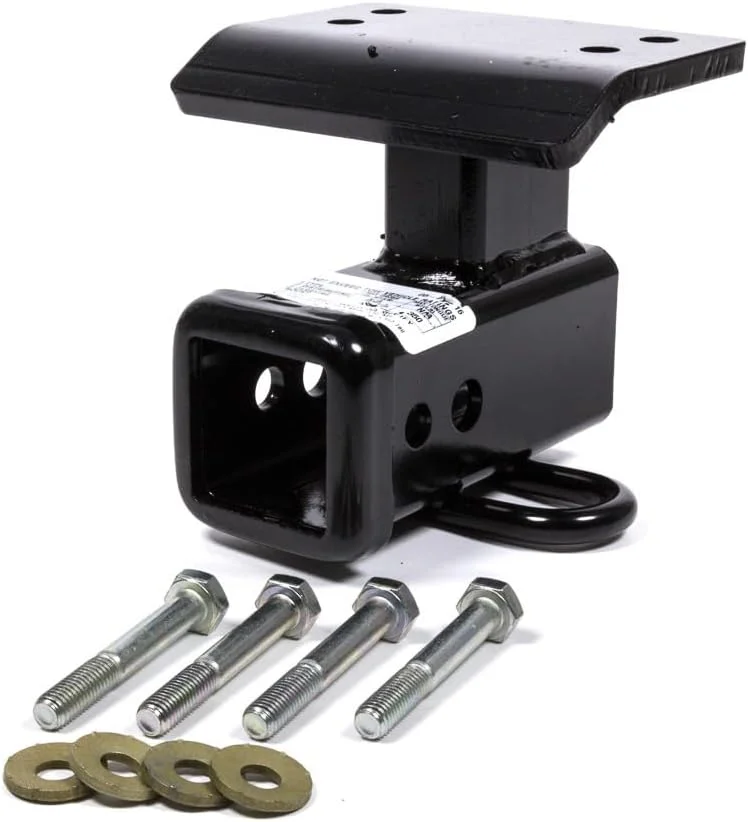

5. Draw-Tite 2 Inch Receiver Hitch

Draw-Tite hitches often carry strong ratings, but you still need to respect the Jeep’s own tow rating. I like Draw-Tite for owners who want a heavier-duty aftermarket receiver and may use racks, small utility trailers, or gear carriers.

A higher hitch rating can offer peace of mind, but it does not raise your Wrangler’s factory towing limit.

Best for:

• Owners wanting a strong aftermarket receiver
• Bike rack and cargo carrier users
• Light towing with extra hitch strength
• Drivers who want a common North American hitch brand

Credit: Amazon

How to Choose the Right 2 Inch Hitch for Your Wrangler Unlimited

Start With Your Jeep Year and Generation

Before buying anything, confirm whether you own a JK, JL, or newer Wrangler Unlimited. The “Unlimited” name means 4-door, but the hitch kit still needs the right generation.

Use this quick guide:

• 2007–2018 Wrangler Unlimited: JK
• 2018–present Wrangler Unlimited: JL
• 4xe plug-in hybrid models: check battery and wiring fitment notes carefully
• Rubicon models: confirm bumper and rear axle/tow package details

A 2 inch receiver opening is standard for many Jeep hitch accessories, but the mounting plate and bolt pattern must match your Wrangler.

Check Bumper Compatibility

Factory plastic bumpers are usually easy. Factory steel bumpers and aftermarket off-road bumpers can change the install.

Before ordering, look under the rear bumper. Check for:

• Existing tow hooks
• Aftermarket bumper brackets
• Rear recovery points
• Parking sensor wiring
• Reverse camera wiring
• Spare tyre clearance

I once helped a friend install a hitch on a modified JK Unlimited with an aftermarket bumper. The hitch itself was correct, but the bumper bracket blocked one bolt hole. We had to stop, measure, and order a different setup.

Match the Hitch to Your Real Use

Do not buy based only on the highest rating. Buy based on how you use your Jeep.

For a bike rack, focus on receiver fit, anti-rattle support, spare tyre clearance, and tongue weight. For a cargo carrier, check tongue weight and how far the load sits behind the Jeep. For towing, check GTW, tongue weight, wiring, trailer brakes, and local laws.

A Wrangler Unlimited can tow useful loads, but it is still a short-wheelbase 4×4 compared with a pickup. Trailer balance matters more than many new owners expect.

“Rear End Lift is a typical sign of too little or negative tongue load.” — Steven K. Malek, Automotive Engineer & Crash Expert, Robson Forensic

Tools and Parts You Need Before Installation

Most Wrangler receiver hitch installs are beginner-friendly if the bolts are clean and the bumper is stock. Still, plan the job before crawling under the Jeep.

You will usually need:

• Socket set
• Ratchet
• Torque wrench
• Breaker bar if bolts are tight
• Hitch kit hardware
• Safety glasses
• Gloves
• 4-pin or 7-way wiring kit if towing
• Dielectric grease for wiring terminals
• Trim tool if routing wiring behind panels

A torque wrench matters. “Tight enough” is not a safe measurement for hitch hardware. Use the torque spec from the hitch kit instructions or the Jeep service information.

If your frame bolts are rusty, spray them with penetrating oil the day before. This is common on Jeeps in Canada, the northern USA, and the UK where winter salt eats hardware fast.

Step-by-Step Jeep Wrangler Unlimited Hitch Install Guide

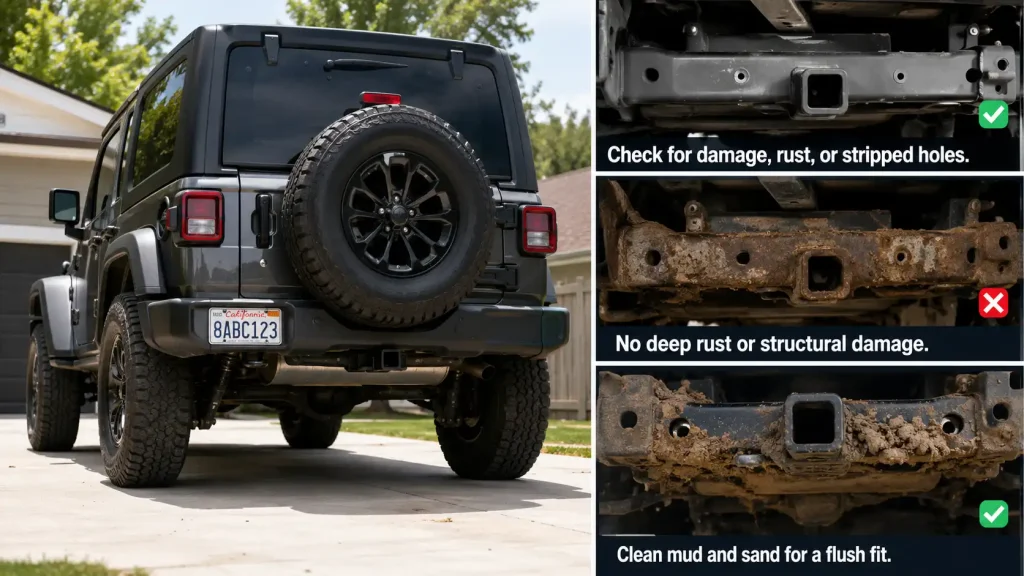

Step 1: Park Safely and Inspect the Rear Frame

Park the Jeep on level ground. Set the parking brake. If you need more room, use ramps, but never depend on a jack alone.

Look at the rear crossmember. Make sure there is no crash damage, deep rust, stripped holes, or bumper interference.

If the Jeep has been used off-road, clean out mud and sand first. Dirt behind the bumper can stop the hitch from sitting flat.

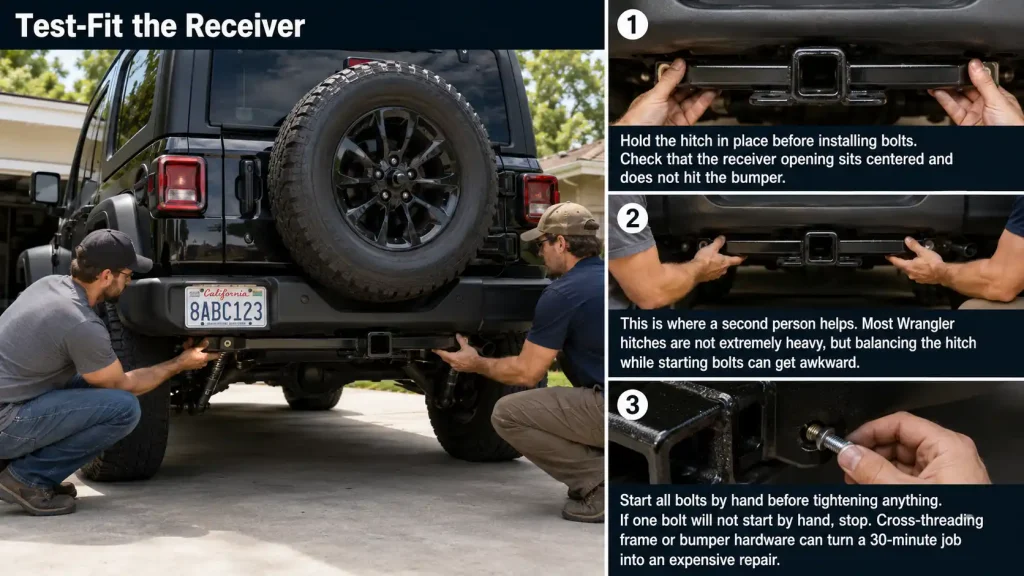

Step 2: Test-Fit the Receiver

Hold the hitch in place before installing bolts. Check that the receiver opening sits centered and does not hit the bumper.

This is where a second person helps. Most Wrangler hitches are not extremely heavy, but balancing the hitch while starting bolts can get awkward.

Start all bolts by hand before tightening anything. If one bolt will not start by hand, stop. Cross-threading frame or bumper hardware can turn a 30-minute job into an expensive repair.

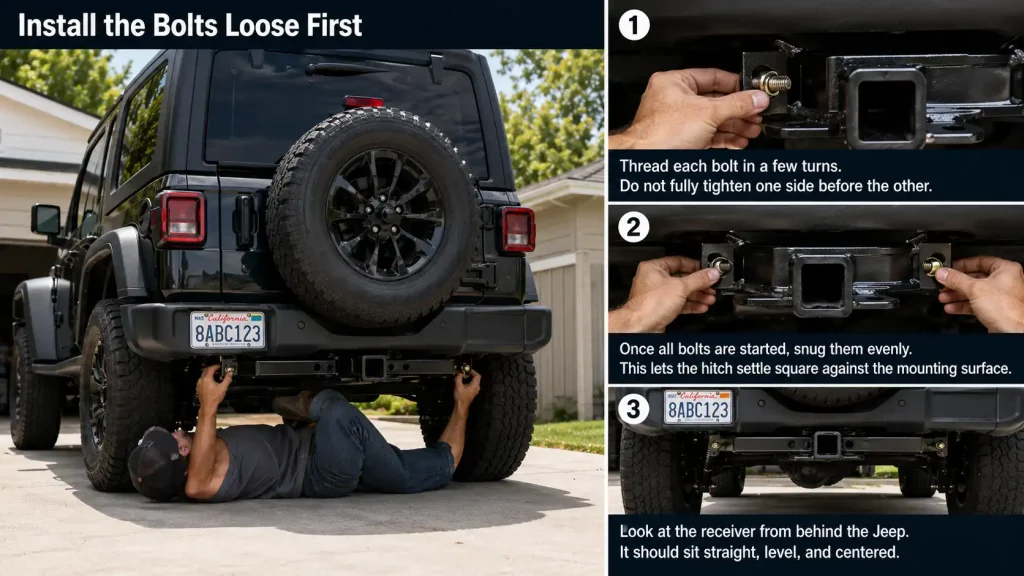

Step 3: Install the Bolts Loose First

Thread each bolt in a few turns. Do not fully tighten one side before the other.

Once all bolts are started, snug them evenly. This lets the hitch settle square against the mounting surface.

Look at the receiver from behind the Jeep. It should sit straight, level, and centered.

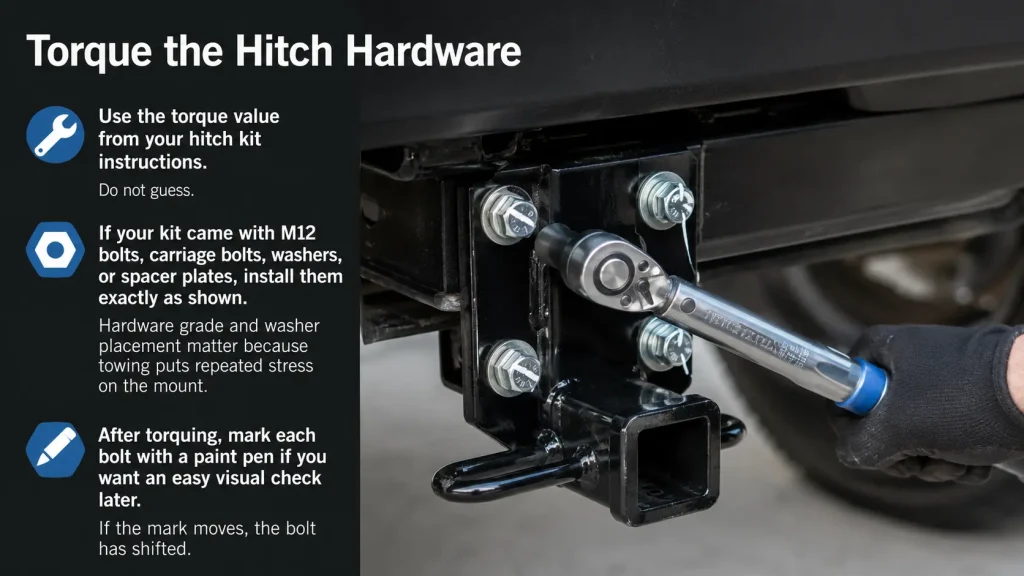

Step 4: Torque the Hitch Hardware

Use the torque value from your hitch kit instructions. Do not guess.

If your kit came with M12 bolts, carriage bolts, washers, or spacer plates, install them exactly as shown. Hardware grade and washer placement matter because towing puts repeated stress on the mount.

After torquing, mark each bolt with a paint pen if you want an easy visual check later. If the mark moves, the bolt has shifted.

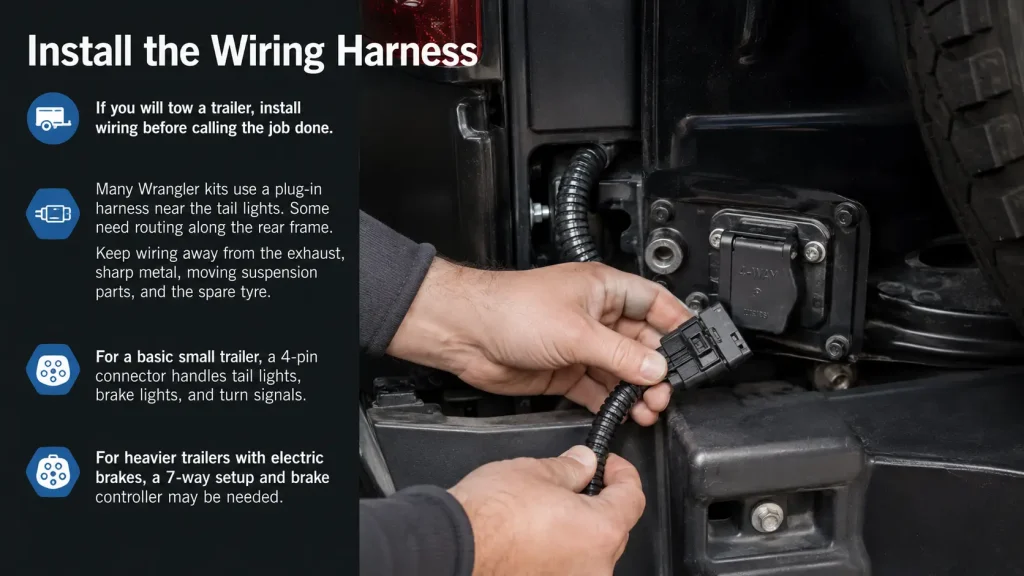

Step 5: Install the Wiring Harness

If you will tow a trailer, install wiring before calling the job done.

Many Wrangler kits use a plug-in harness near the tail lights. Some need routing along the rear frame. Keep wiring away from the exhaust, sharp metal, moving suspension parts, and the spare tyre.

For a basic small trailer, a 4-pin connector handles tail lights, brake lights, and turn signals. For heavier trailers with electric brakes, a 7-way setup and brake controller may be needed.

“The heavier the towed load, the more critical the trailer brake controller becomes.” — Russ Heaps, Kelley Blue Book

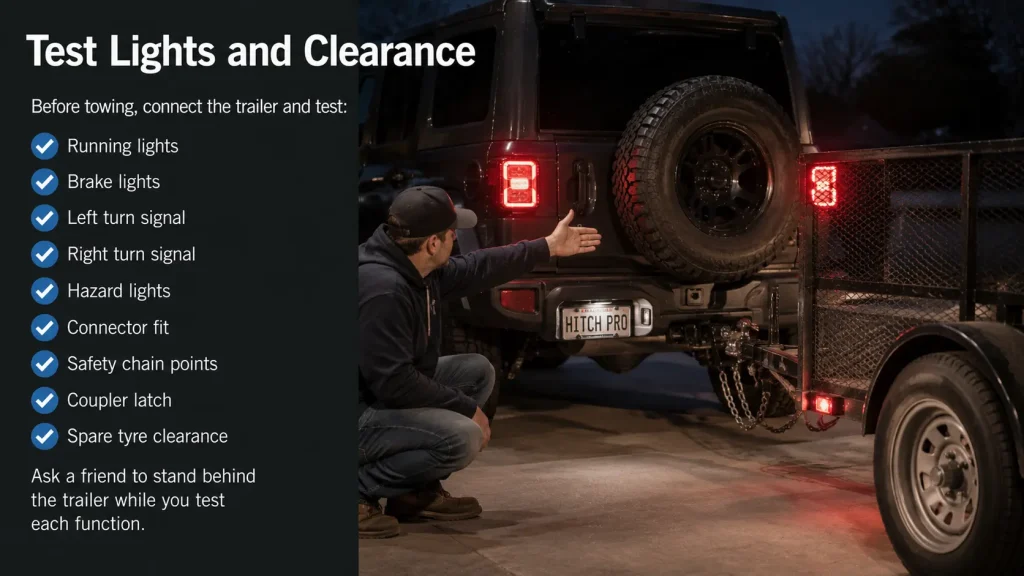

Step 6: Test Lights and Clearance

Before towing, connect the trailer and test:

• Running lights
• Brake lights
• Left turn signal
• Right turn signal
• Hazard lights
• Connector fit
• Safety chain points
• Coupler latch
• Spare tyre clearance

Ask a friend to stand behind the trailer while you test lights. If you are alone, use your phone camera on video mode.

Towing Safety Checks After the Hitch Install

Tongue Weight and Trailer Balance

Tongue weight is the downward force the trailer puts on the hitch. Too little tongue weight can cause sway. Too much can overload the Jeep’s rear axle and reduce steering feel.

For many conventional trailers, a common target is about 10–15% of loaded trailer weight. Always check your Jeep owner’s manual, trailer manual, and hitch instructions.

For example, if your small trailer weighs 2,000 pounds loaded, the tongue weight may land around 200–300 pounds. That can still be a lot once you add passengers, camping gear, tools, and a cooler inside the Jeep.

For U.S. owners, I recommend saving the NHTSA towing safety guide because it explains loaded trailer weight, tongue weight, brakes, wiring, tyres, and pre-trip checks in plain terms.

Do Not Ignore Trailer Brakes

In the USA, trailer brake rules vary by state. Some states require brakes around 1,500 pounds loaded trailer weight, while others set different limits. In Canada, check provincial rules and Transport Canada guidance. In Australia, trailers over 750 kg GTM generally need brakes, and higher weights require stronger brake systems. In the UK, braked and unbraked trailer limits are tied to trailer weight and vehicle approval.

That means your Jeep setup may be legal in one place and not legal in another.

If you tow a trailer with electric brakes, wiring a brake controller may not be a beginner job. A poor wiring job can cause brake faults, blown fuses, weak trailer braking, or no trailer braking at all.

Recheck Bolts After the First Drive

After your first short tow or rack trip, recheck the hitch bolts. Road vibration and fresh hardware can settle.

I like to do a quick check after:

• First 10–20 miles
• First loaded towing trip
• Any hard off-road day
• Every oil change
• Before long road trips

Also inspect the receiver tube for rust, cracks, loose hardware, and bent safety chain loops.

Cost Breakdown: DIY vs Professional Hitch Install

A Wrangler Unlimited hitch install can be cheap if you already have tools and choose a basic bolt-on kit. It gets more expensive when wiring, brake controllers, dealer labor, or rust repair are involved.

DIY Cost Estimate

Typical DIY cost:

• Hitch kit: $90–$320 USD / £90–£280 / CAD $130–$420 / AUD $150–$500
• 4-pin wiring kit: $30–$90 USD / £25–£80 / CAD $45–$120 / AUD $50–$150
• 7-way wiring or brake controller parts: $120–$350 USD / £100–£300 / CAD $170–$480 / AUD $180–$550
• Torque wrench if needed: $40–$150 USD / £35–£120 / CAD $55–$200 / AUD $60–$230

DIY makes sense if the Jeep is stock, the bolts are clean, and you are comfortable with basic hand tools.

Professional Install Cost Estimate

Typical professional install cost:

• Basic hitch only: $120–$300 USD / £100–£250 / CAD $160–$400 / AUD $180–$450
• Hitch plus 4-pin wiring: $180–$450 USD / £150–£380 / CAD $250–$600 / AUD $280–$700
• Hitch plus 7-way and brake controller: $350–$900 USD / £300–£800 / CAD $500–$1,200 / AUD $550–$1,400

Professional help makes sense if your Jeep has rust, aftermarket bumpers, complex wiring, parking sensors, a 4xe setup, or a trailer brake controller.

Legal and Safety Notes by Region

USA

Check your state rules for trailer brakes, lighting, registration, and safety chains. Also check the GVWR, GCWR, tow rating, and tongue weight in your Jeep owner’s manual.

Some states require trailer brakes at lower weights than others. If you cross state lines, plan for the strictest rules on your route.

UK

UK drivers should check towing weight, number plate rules, lighting, insurance, and MOT-related vehicle safety. A towbar or receiver setup must be secure and suitable for the vehicle.

If you import a U.S.-style receiver kit, make sure it meets your trailer use and local road requirements.

Canada

Canadian Jeep owners should think about winter corrosion. Salt can weaken bolts, wiring plugs, and trailer grounds.

Check provincial rules for trailer brakes and safety chains. Also inspect tyres often if towing through cold weather, gravel roads, or mountain routes.

Australia

Australia has strict towing expectations around ATM, GTM, ball weight, safety chains, and trailer brakes. If your trailer exceeds 750 kg GTM, braking rules become a major factor.

For long trips, especially in heat or on corrugated roads, recheck hitch bolts, wiring, tyre pressure, and wheel bearings more often.

Common Myths About Wrangler Hitch Installs

Myth 1: A Stronger Hitch Increases Jeep Tow Capacity

No. A stronger hitch does not change the manufacturer’s tow rating. It may give you stronger hardware, but the Jeep’s engine, cooling system, brakes, wheelbase, axle rating, and transmission still set limits.

Myth 2: A 2 Inch Receiver Is Always Heavy-Duty

A 2 inch opening is useful, but it does not tell the whole story. You still need to check GTW, tongue weight, mounting points, hardware, and vehicle fitment.

Myth 3: Hitch Install Is Always a 10-Minute Job

Some Wrangler installs are fast. Others take longer because of rust, bumper changes, missing hardware, wiring, or damaged threads.

Give yourself extra time. A careful install beats a rushed install every time.

Myth 4: Wiring Is Optional for Light Trailers

If the trailer goes on the road, lights are not optional. You need working signals so other drivers can see what you are doing.

For a hitch cargo carrier or bike rack, wiring may not be needed unless the load blocks your rear lights or plate.

Maintenance Tips After Installing a Jeep Hitch

A hitch is not a set-and-forget part. It sits low, catches road salt, mud, water, and trail debris.

Check these items often:

• Receiver tube rust
• Hitch pin wear
• Loose bolts
• Cracked paint or coating
• Wiring plug corrosion
• Safety chain loops
• Trailer ball torque
• Ball mount rating sticker
• Hitch cover fit
• Spare tyre clearance

If you off-road your Jeep, clean mud from the receiver tube after trail rides. Mud holds moisture and speeds up corrosion.

Use a hitch cover if the receiver is empty. It keeps dirt out and makes the rear look cleaner.

Frequently Asked Questions

What size hitch does a Jeep Wrangler Unlimited use?

Most Jeep Wrangler Unlimited hitch kits use a 2 inch receiver. That size works with many bike racks, cargo carriers, ball mounts, and recovery accessories. Always match the kit to your Jeep year and bumper style before buying.

Can I install a Jeep Wrangler Unlimited hitch myself?

Yes, many bolt-on receiver hitches can be installed at home with basic hand tools and a torque wrench. Wiring can be more involved, especially if you need a 7-way plug or brake controller. If the Jeep has rust or electrical changes, use a professional installer.

How much can a Jeep Wrangler Unlimited tow?

Many Wrangler Unlimited models are rated around 3,500 pounds, while some newer properly equipped Rubicon 4-door models can be rated higher. Always check your exact owner’s manual, VIN-based specs, and door sticker. Do not rely only on the hitch rating.

Do I need wiring if I only use a bike rack?

Usually, no. A bike rack does not need trailer lights unless it blocks your Jeep’s rear lights or license plate. If it blocks them, you may need an auxiliary light kit to stay legal.

Is a 2 inch receiver better than a 1.25 inch receiver?

For a Wrangler Unlimited, yes in most cases. A 2 inch receiver gives you more accessory choices and better support for common Jeep towing and cargo setups. Still, the rating of the hitch and Jeep matters more than the receiver opening alone.

Conclusion

The right Jeep Wrangler Unlimited Hitch Install Guide starts with fitment, not price. Match the 2 inch receiver to your Jeep year, bumper, and real towing use before ordering.

The three biggest takeaways are simple: respect the lowest rated part, install wiring correctly if towing, and recheck bolts after the first loaded trip.

Do the job carefully, and your Wrangler Unlimited becomes more useful for trailers, bikes, cargo, camping gear, and weekend work without risking a careless towing setup.
