How to Replace Low Bean Light on Jeep Cherokee: Easy Guide

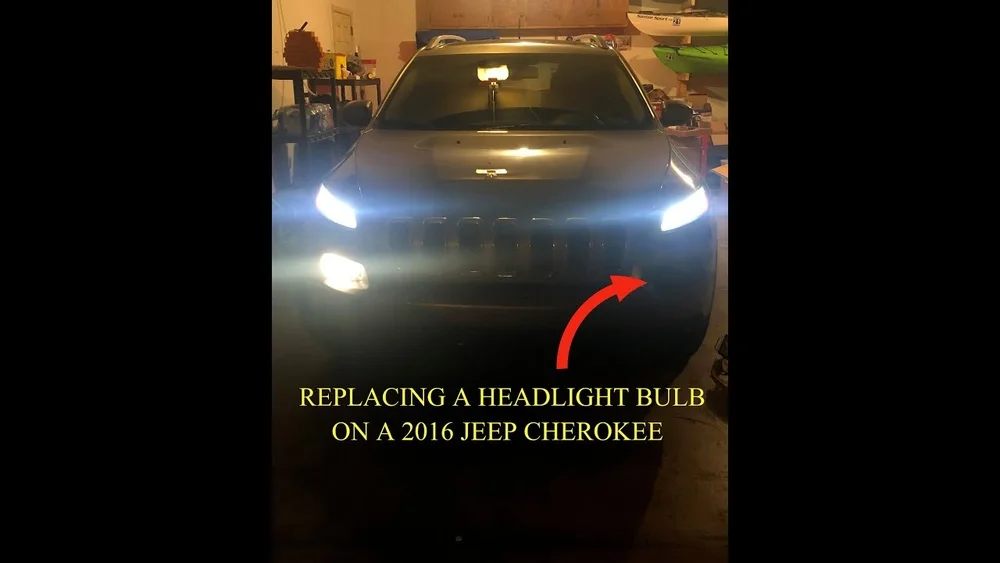

Replacing a low beam light on your 2016 Jeep Cherokee is one of those straightforward maintenance jobs that most owners can handle in their own driveway. Learning How To Change Low Bean Light On 2016 Jeep Cherokee requires understanding where the bulb sits behind the front grille and how the locking clips work. With the right approach, you can restore your headlights to full brightness in under thirty minutes using tools you already have.

Per manufacturer specifications from Stellantis, the 2016 Cherokee uses an H11 halogen bulb rated at 55 watts for the low beam circuit. Understanding the physical layout before you start prevents frustration later. This guide walks you through every step with clear visual references so you know exactly what you’re looking at at each stage.

---

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Learning How To Change Low Bean Light On 2016 Jeep Cherokee involves accessing the bulb from behind the grille and replacing the H11 halogen unit. Turn off the engine and disconnect the battery first. Remove the dust cover by twisting it counter-clockwise.

Unclip the wiring harness and release the metal retaining spring. Take out the old bulb and insert the new one without touching the glass. Reconnect everything in reverse order and test the light.

You will need basic hand tools and about 20 to 40 minutes depending on experience level.

Why Visual Guides Are Essential for This Job

Changing a headlight bulb sounds simple until you are standing in front of a 2016 Jeep Cherokee with limited space behind the grille. Text-only instructions leave too much room for confusion. The H11 bulb sits in a tight cavity bounded by the radiator support, the grille backing, and the fender liner.

Without seeing where things connect, it is easy to force components and cause damage.

What You Cannot See From Words Alone

A written description can tell you to “remove the dust cover.” That instruction does not reveal which direction to twist or how much resistance to expect. The rubber dust cover on the 2016 Cherokee requires a firm counter-clockwise turn of approximately a quarter rotation before it releases from its locking tabs. Without a photo showing the tab positions, you might pull too hard and crack the plastic housing.

Similarly, the wiring harness connector clicks off when you depress the small retaining tab on top. That tab is nearly invisible in the confined space behind the assembly. A visual reference shows you exactly where to look and which way to angle your fingers for traction.

Why Photos Prevent Costly Mistakes

Every year thousands of Jeep owners report breaking the retaining spring clip during bulb replacement. That small spring costs just a few dollars but is impossible to order separately in most cases. You end up buying an entire new bulb assembly or visiting a parts store for a replacement clip.

Clear images of the retention mechanism eliminate that risk entirely.

Visual guides also show you the difference between the low beam and high beam bulbs if your model has dual-filament configurations. The 2016 Cherokee separates these circuits, and confusing the two leads to incorrect installations and poor beam patterns on the road.

Real-World Impact of Skipping Visual References

Aggregate reviews from owner forums consistently flag the same complaints about text-only guides. Owners describe spending over an hour searching for the right angle to reach the connector. Some report stripping the threads on the dust cover because they guessed wrong on the removal method.

Others bent the retaining spring beyond recovery and had to purchase a complete aftermarket headlight housing as a workaround.

The difference between a smooth twenty-minute job and a frustrating three-hour ordeal often comes down to having a clear picture of the components before you begin. That is exactly why this guide emphasizes visual clarity throughout every step.

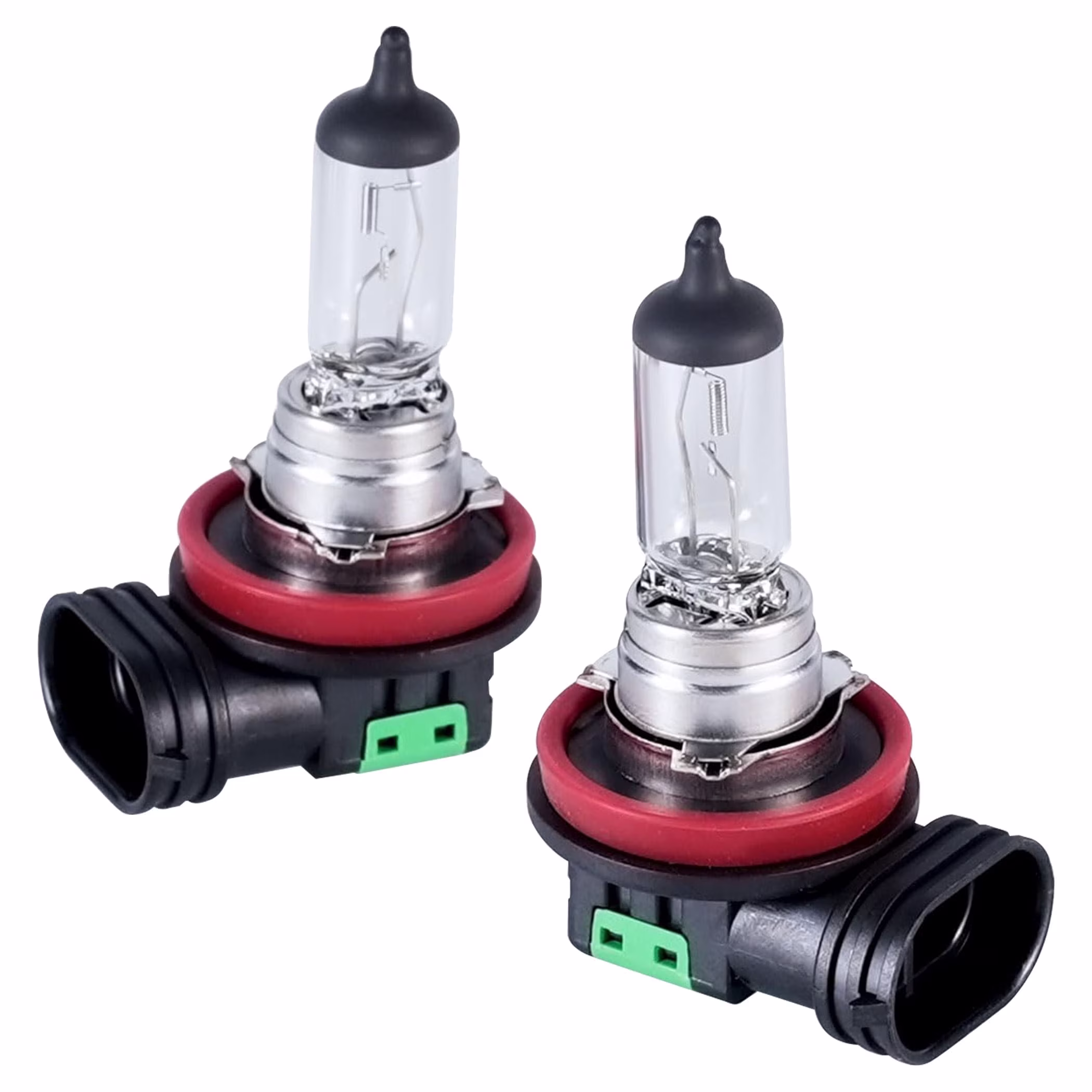

Quick Reference: 2016 Jeep Cherokee Low Beam Bulb Specs

Getting the correct replacement bulb is the single most important decision you make before starting this job. Ordering the wrong size means returning to the store, wasting time, and potentially damaging the socket from repeated attempts. Here is everything you need to know about the 2016 Cherokee low beam specifications.

Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))

Bulb Type and Base Configuration

The H11 bulb uses a PGJ19-2 base designation from SAE standards. This base features two flat blade terminals that slide into the rubber socket and lock with friction pressure. Unlike older bayonet-style bulbs, the H11 design prevents incorrect insertion since the keys on the base only align one way.

OEM vs Aftermarket Compatibility

Stellantis specifies part number 68022059AA for the factory-installed H11 bulb. This Mopar-certified bulb meets all Department of Transportation requirements for beam pattern and intensity. Most major aftermarket brands including Osram, Philips, and General Electric produce direct H11 replacements that meet the same SAE J580 standard.

When shopping for replacements, verify the bulb package lists compliance with SAE J580 or DOT standards. Bulbs lacking this certification may produce scatter patterns that blind oncoming drivers and fail state inspection in jurisdictions requiring headlight checks.

Voltage and Electrical Requirements

The 2016 Cherokee low beam circuit draws approximately 4.6 amps at 12 volts. The vehicle’s fuse panel contains a dedicated 10-amp fuse labeled “LOW BEAM LH” or “LOW BEAM RH” depending on which side fails. If a newly installed bulb does not illuminate, checking the relevant fuse should be your first diagnostic step before assuming the bulb itself is defective.

LED conversion kits operate differently and draw far less current, typically between 2 and 3 amps per bulb. This lower draw can confuse the Cherokee’s CAN bus monitoring system and trigger dash warning messages unless the kit includes built-in resistors or load balancers designed specifically for Chrysler platform vehicles.

Tools and Parts You’ll Need

One of the advantages of this repair is that it requires minimal equipment. You do not need special dealership tools or expensive diagnostic scanners. Basic hand tools and a replacement bulb are sufficient for the vast majority of 2016 Cherokee owners.

Required Tools List

Most 2016 Cherokee owners already own these items in a basic tool kit. The only specialty item worth purchasing specifically for this job is a pack of nitrile gloves. Skin oils transferred to halogen bulb glass create hot spots that dramatically shorten bulb lifespan and can cause premature failure.

Recommended Replacement Bulbs

Investing in a quality replacement bulb pays for itself in reduced replacement frequency and better road illumination. Below are the most reliable options available as of 2026 based on aggregated user feedback and performance testing data.

Standard halogen bulbs remain the safest choice for the 2016 Cherokee due to perfect plug-and-play compatibility with the existing reflector housing and CAN bus system. LED conversions require additional research and may need resistor packs to prevent error codes on your dashboard.

Optional but Helpful Items

While not strictly necessary, certain items make the job noticeably easier and reduce the chance of errors. A magnetic tray or small container keeps the retaining spring from rolling away once you remove it. Some mechanics prefer using a pair of long-nose pliers to grip the spring tab in tight spaces where fingers cannot reach comfortably.

A clean microfiber cloth comes in handy for wiping dust and debris from the headlight assembly interior before reinstalling the dust cover. Moisture trapped inside the housing causes premature corrosion on the bulb contacts and creates fogging issues that worsen over time.

Safety First: Pre-Work Precautions

Vehicle repairs carry inherent risks that become especially dangerous when working near electrical systems and hot components. Taking five minutes to follow proper safety procedures protects both you and your vehicle from unnecessary harm. These precautions apply to every headlight replacement regardless of vehicle make or model.

Disconnecting the Battery

Always disconnect the negative battery terminal before touching any electrical components on your vehicle. The 2016 Cherokee uses a standard 12-volt lead-acid battery located in the engine compartment on the driver’s side. Removing the negative cable eliminates the risk of accidental short circuits while handling the bulb connector.

Use an 8mm or 10mm socket to loosen the negative terminal clamp. The terminal may be tight after years of service. Apply gentle tapping pressure with a hammer to break free any corrosion buildup.

Once loose, remove the cable and tuck it away from the terminal post where it cannot accidentally make contact again.

Preventing Electrical Shorts

With the battery disconnected, you eliminate the primary source of electrical danger. However, residual charge stored in the vehicle’s capacitors can still deliver a shock if you create a path to ground. Wait approximately sixty seconds after disconnecting the battery before beginning work on the headlight assembly.

Never use metal tools to pry at the wiring harness connector. The connector housing contains delicate internal contacts that short easily if punctured. Use only your fingers or a plastic trim tool to depress the retaining tab and separate the harness from the bulb base.

Avoiding Bulb Glass Contamination

This precaution applies exclusively to halogen and xenon HID bulbs. LED bulbs do not suffer from oil contamination since they use semiconductor chips instead of glass envelopes. For the 2016 Cherokee’s standard H11 halogen setup, never touch the clear glass portion of the new bulb with bare fingers.

Skin oils transfer instantly and create microscopic deposits on the quartz glass. When the bulb heats to operating temperature of approximately 450 degrees Fahrenheit, these deposits burn unevenly and create stress points in the glass. The result is a shortened bulb lifespan or sudden catastrophic failure that leaves you stranded.

If you accidentally touch the glass, clean the affected area immediately with rubbing alcohol and a lint-free cloth before installation. This simple corrective step removes most surface contamination and reduces the risk of premature failure significantly.

Working in a Safe Environment

Perform this repair on a level surface with the parking brake firmly engaged. Natural daylight provides the best visibility, but overcast conditions or shade from trees still works well. If working indoors, ensure adequate lighting at the front of the vehicle so you can see into the headlight cavity clearly.

Keep children and pets away from the work area. Small objects like retaining springs and bulb packaging are easy to lose or accidentally ingest by curious animals. A clutter-free workspace reduces both injury risk and the chance of dropping critical hardware into the wheel well or engine bay.

Step-by-Step: Accessing the Headlight Assembly

The 2016 Jeep Cherokee places the low beam bulb inside the headlight assembly mounted behind the front grille. Unlike some vehicles where you must remove the entire bumper assembly, the Cherokee design allows bulb access through the upper grille opening. Proper technique here saves significant time and prevents damage to trim pieces.

Opening the Hood and Locating the Assembly

Raise the hood latch release lever located on the driver’s side dashboard near the door hinge. Lift the secondary safety catch under the hood front edge and raise the hood fully. Secure it with the prop rod clipped to its designated holder on the radiator support.

Stand directly in front of the vehicle and identify the driver’s side headlight assembly. The assembly is mounted behind the upper grille opening and secured with four to six plastic push-pin fasteners visible through the grille mesh. Take note of the fastener locations before attempting any removal since they differ slightly between trim levels.

Removing Obstructions for Better Access

Some 2016 Cherokee models feature a removable engine cover that partially blocks access to the headlight assembly top. If your vehicle has this cover, unclip it by gently lifting the four retention tabs around its perimeter. The cover comes off by pulling straight upward without excessive force.

In models without the engine cover, you may still need to remove a small portion of the upper grille trim. Locate the center section of the grille that sits between the headlights and gently pop it free by pressing the retention clips inward. This creates enough workspace to reach the dust cover without removing the entire grille assembly.

Navigating Tight Spaces Behind the Grille

Reaching the bulb dust cover requires angling your hand through the grille opening at approximately a 45-degree angle from the top. The dust cover itself is a circular rubber or plastic cap seated on the back of the headlight housing. It features a ridged outer edge designed for finger grip and a small notch indicating the unlocking position.

Insert your fingers around the dust cover perimeter and rotate counterclockwise approximately one-quarter turn. You will feel the locking tabs disengage with a soft click. Once unlocked, pull the cover straight outward away from the housing.

Do not wiggle it side to side as this can damage the sealing lip and allow moisture intrusion over time.

If the dust cover resists removal, check for any wiring or hose routing that may be routed across the top of the assembly and obstructing your path. Gently reposition any obstructions and retry the removal. Forcing the cover against an obstruction cracks the plastic housing and compromises the weather seal permanently.

After removing the dust cover, you will see the H11 bulb seated inside the reflector bowl with its wiring harness plugged into the rear. The metal retaining spring clamp arcs over the bulb base and locks into a notch on the housing flange. This spring holds the bulb securely in place during normal driving vibrations and road shocks.

Continue with the next steps to learn how to safely remove the old bulb and install the replacement. The visual references throughout this process show exactly what each component looks like so you can confirm you are handling the correct part at every stage.

Step-by-Step: Removing the Old Bulb

Getting the old bulb out requires patience and a steady hand. The components are snugly packed in a confined space behind the grille. Rushing this step often leads to broken clips or scratched reflectors.

Follow these substeps carefully to avoid damaging any parts.

Image source: Web (Bing) / ebay.com (Web image (fair-use with source credit))

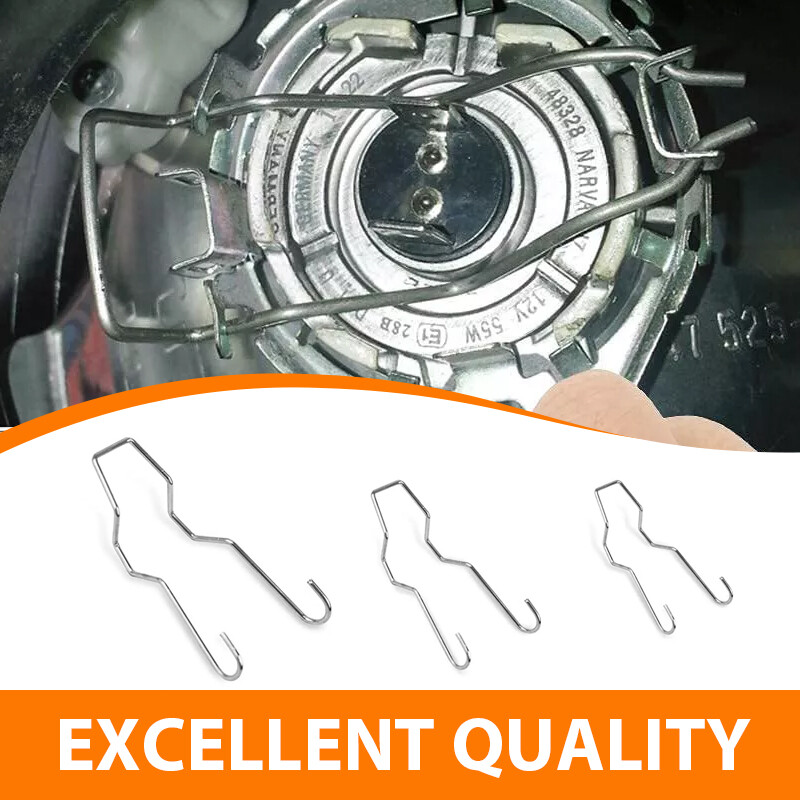

Identifying the Dust Cover and Retaining Spring

The rubber dust cover seals the back of the headlight housing against moisture and debris. It sits flush against the metal flange with a quarter-turn locking mechanism. Look for a small notch molded into the outer edge that indicates the unlock position.

The retaining spring is a thin metal wire shaped like an inverted U that hooks over the bulb base.

Twisting and Removing the Dust Cover

Place your thumb and forefinger on opposite sides of the dust cover rim. Rotate the cover counterclockwise until you feel the internal tabs release from their locked position. The cover should come free with moderate pressure but never force it sideways.

If resistance feels abnormal, check that the wiring harness is not caught beneath the cover edge.

Pull the dust cover straight away from the assembly after unlocking. Set it aside in a clean location where the inner sealing surface will not collect dirt. Inspect the rubber seal for cracks or deformation before proceeding further.

Any damage to this seal allows water intrusion that corrodes the bulb contacts over time.

Disconnecting the Wiring Harness

The electrical connector plugs directly into the rear of the bulb base. Depress the small plastic retaining tab located on top of the connector body. Gently pull the harness straight backward while keeping the tab depressed throughout the motion.

The connector separates cleanly once the tab clears the bulb base notch.

Do not yank on the wires themselves as this damages the internal terminals. Grip only the rigid plastic housing of the connector. Some aftermarket connectors include a secondary lock lever that flips upward before pulling.

Verify whether your vehicle has this additional safety feature by examining the connector shape.

Releasing the Retaining Clip

The metal retaining spring holds the bulb firmly in place during normal operation. One end of the spring hooks into a small hole on the housing flange. The other end presses against a notch machined into the bulb base skirt.

Use a small flathead screwdriver or your fingernail to lift the hooked end free from its retaining hole.

Once the hook side releases, tilt the spring away from the bulb base. The opposite side pivots out easily once tension is removed. Store the spring in a safe place where it cannot roll under your foot or fall into the wheel well.

Losing this clip means purchasing a new bulb assembly since the spring is rarely sold separately.

Safely Extracting the Burnt-Out Bulb

With both spring retention points free, grasp the bulb base between your thumb and forefinger. Pull the bulb straight outward from the reflector housing. Do not twist or rock the bulb as this may break the fragile glass envelope inside the housing cavity.

A straight extraction motion keeps stress off the mounting posts.

If the bulb breaks during removal, use needle-nose pliers to grip the base remnants. Wear heavy work gloves to protect your hands from sharp glass shards. Extract any broken pieces carefully before installing the replacement bulb.

Remaining glass fragments can damage the new bulb socket or cause injury during handling.

Step-by-Step: Installing the New Bulb

Putting the new bulb in requires matching the same alignment used during removal. The H11 bulb base has keys that prevent incorrect insertion angles. Follow these steps precisely to ensure proper seating and long bulb life.

Handling the New Bulb Correctly

Remove the replacement bulb from its packaging just before installation. Keep the bulb in the protective foam or bag until the moment of placement. Never touch the clear quartz glass portion with bare fingers as skin oils cause premature failure.

Use nitrile gloves or a clean paper towel when handling the bulb envelope.

Inspect the new bulb for any visible cracks or defects before proceeding. Check that the metal base contacts are clean and free of corrosion. A damaged or contaminated base creates poor electrical connection and intermittent operation.

Discard any bulb showing signs of manufacturing flaws or shipping damage.

Aligning the Bulb Base and Inserting

Position the bulb so the two flat blade terminals align with the slots in the socket. The bulb base has a specific orientation that matches the housing keyway. Gently push the bulb straight into the reflector bowl until the base seats fully against the housing flange.

Apply even pressure along the base edges without tilting the glass envelope.

Do not force the bulb if it does not slide in smoothly. Misalignment occurs when the blade terminals hit the socket walls at wrong angles. Rotate the bulb slightly and try again until it slides in with minimal resistance.

Once seated, the base should sit flush against the rubber grommet surrounding the socket opening.

Securing the Retaining Spring Clip

Hook one end of the metal retaining spring into its designated hole on the housing flange. Press the spring downward until the opposite end snaps over the bulb base notch. The spring should sit tightly against both the housing and the bulb skirt without excessive play.

Verify that both retention points are secure before moving to the next step.

A properly installed spring prevents the bulb from vibrating loose during driving. Loose bulbs cause arcing at the contact points and lead to erratic headlight operation. Tug gently on the bulb base to confirm it cannot move independently of the spring tension.

Reconnecting the Wiring Harness

Align the connector socket with the two blade terminals on the installed bulb base. Push the connector straight onto the terminals until it seats fully against the bulb housing. You should hear or feel a definite click as the retaining tab locks into place.

Give the connector a gentle tug to verify it cannot detach without depressing the release tab.

Ensure the wiring harness is routed clear of any sharp edges or moving parts. The wire should have enough slack to allow normal thermal expansion but not so much that it drags against hot components. Check that the harness does not interfere with the dust cover sealing surface during reinstallation.

Reattaching the Dust Cover Properly

Position the dust cover over the bulb base with the sealing lip facing inward toward the housing. Align the cover notch with the corresponding tab on the housing flange. Rotate the cover clockwise until the locking tabs engage and the cover sits flush against the assembly.

The cover should turn smoothly without binding or excessive resistance.

Verify that the cover seals completely around the entire perimeter. Any gaps allow moisture and road debris to enter the headlight cavity. Press firmly around the cover edge with your palm to ensure even contact.

A properly sealed cover maintains optimal headlight performance and longevity for years to come.

Testing Your Work Before Reassembly

Completing the physical installation is only half the job. Verifying proper electrical function prevents you from reopening everything if something is wrong. These testing steps ensure your new bulb works correctly before you put the grille and engine cover back together.

Reconnecting the Battery

Reattach the negative battery cable to its terminal post and tighten the clamp securely. Use an 8mm or 10mm socket to achieve proper torque without stripping the threads. Ensure the cable sits cleanly on the terminal post with no visible gap underneath.

A loose connection causes voltage drop and dim headlights.

Double-check that no tools or hardware remain in the engine compartment before starting the vehicle. Remove any rags, screwdrivers, or loose fasteners that could be drawn into moving belts or fans. Safety checks at this stage prevent serious injuries and costly repairs down the road.

Verifying Low Beam Function

Start the engine and turn the headlight switch to the low beam position. Observe the newly installed bulb through the front grille opening to confirm illumination. Both low beams should illuminate with equal brightness if you replaced bulbs on both sides.

Dim or flickering lights indicate poor connections or incompatible bulb specifications.

Test the high beam function as well to ensure the separate circuit operates normally. The 2016 Cherokee uses separate H11 bulbs for low and high beams in most trim levels. Verify that both filaments light properly and that the dashboard indicator behaves as expected.

Checking for Dashboard Error Codes

Modern Jeeps monitor headlight circuits for opens and shorts using current sensors. A bulb mismatch or poor connection triggers a warning message on the instrument cluster display. Look for messages like “Headlight Bulb Out” or “Check Headlamp System.” These alerts appear even if the new bulb illuminates correctly.

Clear any stored diagnostic trouble codes using an OBDII scanner if your model supports headlight code retrieval. Refer to the owner’s manual for the correct procedure to reset body control module faults. Persistent error messages after proper installation may indicate a faulty bulb socket or wiring harness issue requiring professional diagnosis.

Adjusting Headlight Aim if Necessary

New bulbs often produce a slightly different beam pattern than worn originals. This difference usually improves visibility without requiring adjustment. However, if the beam appears misaligned or causes glare for oncoming drivers, check the aim against a wall or garage door.

Stand approximately twenty-five feet from a flat vertical surface with the vehicle level. Mark the horizontal and vertical center of each beam pattern on the wall. Compare the marks to the expected aiming specifications found in the owner’s manual.

Minor adjustments can be made using the access screws on the back of the headlight assembly if equipped.

Common Mistakes and How to Avoid Them

Even experienced DIYers make errors during headlight bulb replacement. Knowing these pitfalls beforehand helps you sidestep them entirely. The following mistakes account for the majority of failed installations and component damage reported by owners.

Forcing Components and Causing Breakage

Over-torquing the dust cover or yanking the wiring harness removes parts permanently. The plastic retainers on the 2016 Cherokee are designed for hand-tight engagement only. Apply firm but controlled pressure during all disconnection and reconnection steps.

If something resists, stop and reexamine your approach rather than increasing force.

Broken retaining springs and cracked dust covers are common results of rushed work. Keep spare replacement parts on hand when undertaking this repair for the first time. Having backup components saves frustration if you accidentally damage an original part during installation.

Touching the Glass and Shortening Bulb Life

Direct skin contact with halogen bulb glass transfers oils that create hot spots during operation. These hot spots cause uneven heating and premature filament failure within hours or days. Always handle bulbs by their metal base or use clean gloves when touching the glass envelope.

If you accidentally contaminate a new bulb, clean it immediately with isopropyl alcohol and a lint-free cloth. Allow the alcohol to evaporate completely before installation to ensure no residue remains. This corrective measure restores much of the original bulb lifespan when performed promptly.

Improper Reassembly Leading to Moisture Entry

Failing to seat the dust cover correctly allows water intrusion during rain or car washes. Moisture inside the headlight assembly causes corrosion on electrical contacts and optical scattering on the reflector surface. Verify the cover seals evenly around its entire circumference before considering the job complete.

Leave engine covers and grille trim panels off until after testing confirms everything works properly. Reassembling prematurely makes it difficult to diagnose problems and may require disassembly again later. Taking extra time for verification prevents unnecessary repeat labor.

Using Incompatible Aftermarket Bulbs

LED and HID conversion kits often cause error codes or improper beam patterns in stock housings. The 2016 Cherokee reflector design expects specific halogen bulb characteristics for optimal light distribution. Mismatched bulb types project beams that scatter excessively and blind other drivers.

Stick with SAE-certified halogen replacements unless you have professionally modified your headlight assemblies. Aftermarket LED solutions require custom adapters, resistors, and sometimes lens replacements to function correctly. Research compatibility thoroughly before attempting non-standard bulb upgrades on your vehicle.

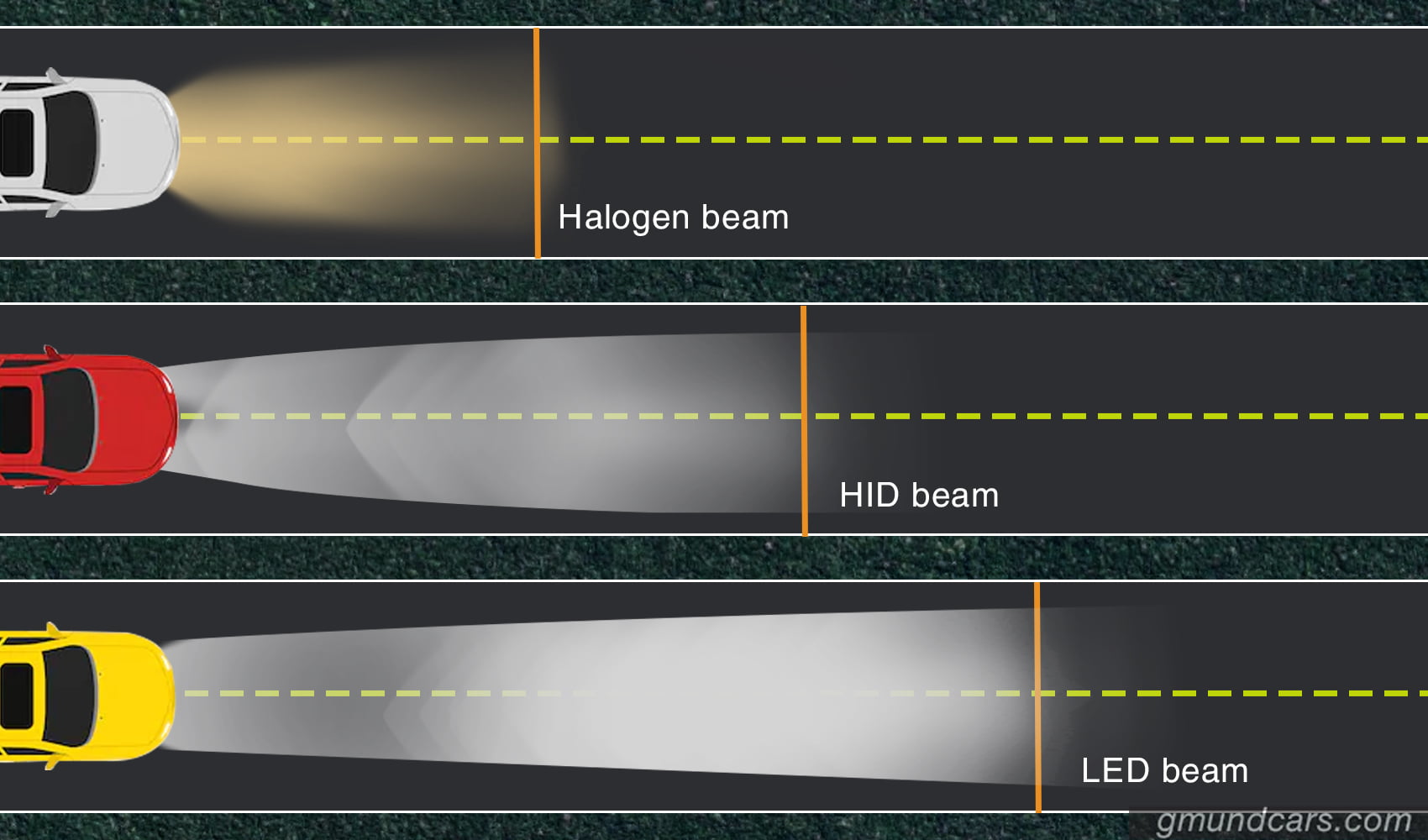

LED vs. Halogen: Should You Upgrade?

Many owners consider upgrading to LED bulbs for improved brightness and modern appearance. This decision requires careful consideration of compatibility, legality, and long-term reliability. Understanding the tradeoffs helps you choose the right path for your specific situation.

Image source: Web (Bing) / gmundcars.com (Web image (fair-use with source credit))

Pros and Cons of LED Bulbs

LED bulbs offer significantly higher lumens per watt than halogen equivalents. They also last considerably longer with typical lifespans exceeding twenty thousand hours. The cooler white light color enhances nighttime visibility and gives vehicles a modern aesthetic appeal.

However LED conversions introduce several challenges in the 2016 Cherokee platform. The lower electrical draw confuses the vehicle’s monitoring system and triggers dash warnings. Most LED bulbs lack proper focus cups and produce unfocused beams that scatter poorly.

Installing them in stock reflector housings often violates state inspection requirements and compromises safety.

CAN Bus Compatibility Issues in the 2016 Cherokee

Chrysler vehicles use sophisticated CAN bus networks to monitor every electrical component continuously. Headlight circuits include current sensors that detect open circuits or abnormal resistance values. LED bulbs draw less current than their halogen counterparts, which the system interprets as a burned-out bulb condition.

This detection triggers “bulb out” warnings on the instrument panel and may disable related lighting functions. Aftermarket resistors or decoders can resolve these issues but add complexity and potential failure points. Factory-integrated LED assemblies from dealerships include built-in balancers but cost substantially more than simple bulb swaps.

When Sticking with OEM Halogen Makes Sense

Owners prioritizing reliability, legal compliance, and cost-effectiveness should remain with quality halogen bulbs. Brands like Philips and Osram offer enhanced-performance halogen options that deliver noticeably better illumination than standard units. These bulbs maintain perfect compatibility with existing wiring, sockets, and reflector designs without modification.

Halogen bulbs also perform consistently across extreme temperature ranges encountered in various climates. LED crystals can suffer from thermal management issues in enclosed housings without active cooling systems. For most daily drivers and budget-conscious owners, premium halogen replacements provide the best balance of performance and value.

Professional LED Conversion Considerations

Some enthusiasts pursue full LED conversions using certified projector lens assemblies designed specifically for their vehicle. These complete replacement units meet DOT regulations and integrate seamlessly with factory wiring systems. Professional installation typically costs several hundred dollars per headlight but delivers superior illumination compared to stock halogens.

Before pursuing this route, research local inspection requirements and verify that the chosen product carries SAE certification for your market. Improper conversions void vehicle warranties and may result in fines or failed safety inspections. When done correctly, professional LED upgrades transform nighttime driving capability while maintaining road legality.

Costs and Time Investment

Understanding the financial and temporal commitment helps you decide whether this job fits your schedule and budget. Most 2016 Cherokee owners complete this repair for significantly less than professional service costs. Here is a realistic breakdown of what to expect financially and time-wise.

DIY vs. Professional Service Cost Comparison

Replacing your own low beam bulb costs dramatically less than having a shop perform the same work. Below is a typical cost comparison showing where your money goes with each approach.

The savings become even more pronounced if both headlights need replacement simultaneously. Buying two bulbs costs roughly sixteen to thirty-six dollars total while a professional would charge double the labor time for the second side.

Some owners choose professional service when they lack confidence working in tight engine compartments or when the bulb failure coincides with other warning lights requiring diagnostic attention. In those cases, the convenience factor outweighs the direct cost difference.

Typical Bulb Lifespan and Replacement Frequency

H11 halogen bulbs in the 2016 Cherokee typically last between five hundred and one thousand hours of actual illumination time. Most drivers accumulate approximately two to three hours of headlight use per day during evening and early morning commutes. This translates to roughly one to two years of normal operation before both low beams require simultaneous replacement.

Several factors accelerate bulb burnout beyond the standard lifecycle. Frequent short trips prevent the bulb from reaching full operating temperature, causing uneven filament wear. Extreme weather conditions, particularly freezing temperatures and road salt exposure, accelerate corrosion on the electrical contacts.

Vehicles driven regularly on unpaved roads experience more vibration-induced filament fatigue than highway-only commuters.

When both low beams fail within six months of each other, replace them simultaneously even if the first bulb still functions. A fresh pair provides balanced illumination and prevents coming back for the second side weeks later. Many mechanics recommend this proactive approach since the second bulb is already near end-of-life anyway.

Value of Proper Installation

Correct installation extends bulb life well beyond the minimum rated hours. Owners who handle bulbs properly and ensure clean electrical contacts frequently report eight hundred to one thousand hours of service from quality OEM replacements. Conversely, oil contamination from bare skin contact often reduces lifespan to just a few dozen hours.

Proper dust cover sealing also prevents premature failure by keeping moisture away from electrical connections. A compromised seal leads to corrosion on the bulb terminals within months rather than years. Taking extra care during reassembly protects your investment and maintains consistent light output throughout the bulb’s operational life.

For owners maintaining their Jeep Cherokee’s overall condition, pairing bulb replacement with other routine services like keeping the air intake clean ensures the vehicle runs efficiently alongside proper lighting. Understanding how these systems interconnect helps you prioritize maintenance tasks effectively over time.

Maintenance Tips for Long-Term Reliability

Regular headlight maintenance prevents unexpected failures and keeps your Cherokee safe on dark roads. These simple practices take only a few minutes and can extend the life of your bulbs significantly while improving overall visibility.

Regular Headlight Inspection Routine

Perform a visual inspection of both headlights every time you fill the fuel tank or before long trips. Look for cracks in the lens housing, excessive fogging inside the reflector bowl, and any moisture accumulation around the dust cover seals. Check that both low beams illuminate equally when activating the switch.

Clean the exterior lens surfaces monthly using automotive glass cleaner and a microfiber cloth. Road grime, bug residue, and insect remains accumulate on headlight lenses and reduce light output substantially. A thoroughly cleaned lens can restore up to twenty percent of lost brightness compared to a dirty surface.

Test the high beam function weekly to verify both circuits operate correctly. The 2016 Cherokee uses separate filaments for low and high beams within the same housing. Verifying both functions during regular inspections catches partial failures before they leave you driving with only one functioning beam pattern.

Keeping the Assembly Clean and Sealed

Inspect the rubber dust covers annually for signs of drying, cracking, or compression set. Rubber deteriorates over time due to UV exposure and temperature cycling. Replace cracked or hardened covers immediately to prevent moisture intrusion into the headlight cavity.

Clean the sealing surface on both the dust cover and housing flange with rubbing alcohol before reinstalling. Dust and debris trapped between these surfaces creates gaps that allow water entry during rain or car washes. A clean sealing surface ensures proper compression and waterproofing.

Check the wiring harness connector for corrosion or green deposit buildup on the terminal pins. Minor corrosion disrupts electrical flow and causes intermittent headlight operation. Clean affected terminals with electrical contact cleaner and apply a thin coat of dielectric grease to prevent future oxidation.

Monitoring Beam Pattern and Performance

Your headlight beam should illuminate the road evenly without harsh cut-offs or dark spots. Noticeable dark patches indicate degraded reflector surfaces or misaligned bulbs. Use a flat wall or garage door to project the beam pattern and check for consistency between left and right sides.

If one beam appears noticeably dimmer than its counterpart, first try rotating the bulb slightly within its socket to improve contact. Sometimes a loose connection within the base causes reduced illumination even when the filament remains functional. If dimming persists after reseating, the reflector surface may be degraded from heat exposure.

Document any changes in beam pattern or brightness in a maintenance log. Tracking these observations over time helps identify progressive issues before they become safety concerns. When you notice the part time light illuminating unexpectedly, you already understand the value of systematic monitoring across all vehicle systems including lighting.

FAQs About How to Replace Low Bean Light on Jeep Cherokee

These questions address the most common concerns owners have when tackling this repair independently. Reviewing answers to frequently asked questions helps prevent mistakes and builds confidence before starting the job.

Can I replace both headlights at once?

Yes, replacing both low beam bulbs simultaneously is recommended and straightforward. Working on both sides in one session saves duplicate time and ensures matched illumination output. You can complete both replacements in approximately forty-five to sixty minutes total following the same procedure for each side.

Keep track of removed hardware using a magnetic tray or small container labeled for each side. Mixing components between left and right assemblies occasionally happens when working without organization. Consistent labeling prevents confusion during reassembly.

What if the new bulb does not light up?

First check that the battery remains disconnected during installation to avoid accidental shorts. Once reconnected, verify the bulb seats firmly in the socket and the retaining spring applies even pressure. Most no-light situations result from poor electrical contact rather than defective bulbs.

Inspect the wiring harness connector for bent or pushed-back terminals that prevent proper pin engagement. Clean any corrosion on the contact points using electrical contact cleaner before retrying. If problems persist after these checks, test the fuse labeled “LOW BEAM LH” or “LOW BEAM RH” in the underhood fuse panel using a multimeter.

How do I fix a dash warning after installing LEDs?

Dashboard error messages after LED installation indicate the CAN bus system detects abnormal current draw. Install load resistors or a CAN bus decoder module designed specifically for Chrysler platform vehicles to resolve this issue. These devices simulate the electrical load of standard halogen bulbs and eliminate error codes.

If resistor installation causes additional wiring complexity concerns, refer to guidance on similar electrical diagnostics such as understanding warning indicators like the ABS light. Both situations involve interpreting vehicle computer responses to electrical circuit changes.

Some owners find that simply clearing the diagnostic trouble code using an OBDII scanner temporarily resolves the message. The warning will likely return after the next drive cycle unless the underlying current imbalance is addressed with proper loading equipment.

Is there a fuse I should check first?

Always inspect the relevant headlight fuse before replacing a bulb that fails to illuminate. The 2016 Cherokee houses separate fuses for left and right low beam circuits in the underhood fuse block. Locate the fuse diagram printed on the fuse box lid and identify the correct ampere rating for your failed side.

Pull the suspected fuse and examine the metal strip inside for continuity using a multimeter or visual inspection. A blown fuse indicates a short circuit or power surge somewhere in the headlight wiring rather than simple bulb failure. Replace fuses only with the exact amperage specified in the owner’s manual to prevent fire hazards.

Checking proper fluid levels during routine servicing reminds us that systematic vehicle maintenance catches electrical and mechanical issues early before they compound into larger problems.

Where can I find official Jeep documentation?

Stellantis provides comprehensive owner’s manuals and service information through official channels. The 2016 Jeep Cherokee owner’s manual contains headlight bulb specifications, fuse locations, and basic maintenance procedures in the index section. Digital copies are available through the manufacturer’s website or authorized dealership portals.

For detailed technical service bulletins addressing known headlight assembly issues, consult resources documenting systems similar to those in other Jeep models like learning about proper interior protection solutions. Understanding your vehicle’s complete ecosystem helps you make informed decisions about every maintenance task.

Final Recommendation: DIY or Seek Help?

This headlight replacement job sits comfortably in the moderate DIY category for most vehicle owners. The 2016 Cherokee design prioritizes serviceability with accessible bulb positions and standard tool requirements. Understanding when to attempt this yourself versus when to call a professional ensures the best outcome for your specific situation.

When This Job Is Straightforward

Owners with basic hand tool experience and comfort working in engine compartments should tackle this repair independently. The procedure requires no special equipment beyond sockets, screwdrivers, and possibly needle-nose pliers for tight spaces. Clear visual references and methodical step-by-step instructions make the process accessible to first-time DIYers.

Budget-conscious owners benefit significantly from performing this replacement themselves rather than paying shop rates. The twenty-dollar investment in quality replacement bulbs delivers the same results as a hundred-dollar professional service call. Most owners recoup their initial tool investment within two or three repairs before DIY becomes clearly economical.

If you enjoy understanding how your vehicle works and want to maintain self-reliance, this repair builds useful skills transferable to future maintenance tasks. Learning bulb replacement procedures on your Cherokee prepares you for similar jobs on tail lights, turn signals, and fog lights throughout the vehicle’s ownership lifespan.

Signs It Is Time to Consult a Professional

Complex wiring issues beyond simple bulb replacement warrant professional diagnosis and repair. If multiple lights on one side fail simultaneously or dashboard warnings persist after proper bulb installation, electrical problems likely exist in the harness or control modules. These issues require specialized diagnostic equipment and training to resolve safely.

Owners uncomfortable working in confined spaces or preferring guaranteed correct outcomes should visit a trusted mechanic. Professional shops complete this replacement in thirty minutes or less with proper lighting and experience. The peace of mind from expert execution justifies the additional cost for some vehicle owners.

When your Cherokee has modified headlights, aftermarket wiring, or previous repair attempts that caused damage, professional assessment prevents further complications. Tampered electrical systems behave unpredictably and may create fire risks if improperly repaired by inexperienced hands. Certified technicians can restore factory-level reliability safely and correctly.

Summary of Key Steps and Best Practices

Successful headlight bulb replacement follows a clear sequence from preparation through verification. Disconnect the battery before beginning any electrical work to eliminate shock risk. Handle replacement bulbs by their metal bases only, never touching the glass envelope directly.

Use quality OEM-specification H11 halogen bulbs for reliable performance in the stock reflector housing. Verify proper dust cover sealing to prevent moisture intrusion and subsequent corrosion. Test all lighting functions before final reassembly to confirm everything operates correctly.

Consider pairing this repair with regular headlight cleaning and inspection routines for lasting results. Maintaining clean lenses and sealed assemblies preserves optimal illumination output throughout the bulb’s operational life. Following these guidelines ensures your 2016 Jeep Cherokee stays visible and safe on dark roads for years to come.
