How to Install LED Light Bar on Jeep Wrangler TJ: Step-by-Step Guide

Installing an LED light bar on a Jeep Wrangler TJ is one of those upgrades that can make a noticeable difference when driving trails, working around a campsite, or navigating poorly lit off-road areas at night. The installation itself is not especially difficult, but getting the mounting, wiring, fuse protection, and switch setup right matters just as much as choosing the light bar.

This guide explains how to install an LED light bar on a Jeep Wrangler TJ from start to finish. It covers mounting options, wiring, relay setup, firewall routing, wire gauge, fuse selection, testing, aiming, and common problems.

The instructions are suitable for 1997–2006 Jeep Wrangler TJ models, although the exact bracket design and wiring harness may vary by product.

Before beginning, read the instructions included with your light bar and mounting brackets. If the manufacturer’s instructions differ from general advice in this guide, follow the manufacturer’s specifications.

What You Need to Install an LED Light Bar on a Jeep Wrangler TJ

Getting everything ready before removing bolts or running wires makes the job much easier.

LED Light Bar

Choose a light bar that suits both your mounting position and the type of driving you do. Popular options for Jeep TJ owners include compact bumper-mounted lights, hood-mounted bars, and larger windshield-mounted LED light bars.

TJ-Compatible Mounting Brackets

Do not assume that a universal bracket will fit your Jeep correctly. Look for mounting hardware specifically designed for the 1997–2006 Wrangler TJ.

Depending on the location, you may need:

• Windshield/A-pillar brackets
• Hood brackets
• Bumper brackets
• Light tabs
• Rubber mounting pads or gaskets

Wiring Harness

A complete LED light bar wiring harness normally includes:

• Automotive relay
• Inline fuse holder
• Fuse
• Rocker or toggle switch
• Power wire
• Ground wire
• Light connector
• Battery terminals

Using a preassembled harness can simplify the installation considerably.

Tools

You may need:

• Torx bits
• Ratchet and sockets
• Combination wrenches
• Screwdrivers
• Wire cutters
• Wire strippers
• Crimping tool
• Multimeter
• Electrical tape
• Zip ties
• Split wire loom
• Heat-shrink tubing

A trim removal tool can also help when installing the interior switch.

Choosing the Right LED Light Bar for a Jeep Wrangler TJ

The best LED light bar depends on where you plan to install it and how you use your Jeep.

What Size LED Light Bar Fits a Jeep Wrangler TJ?

There is no single correct size.

A compact LED bar can work well on the bumper or hood, while some Wrangler TJ owners use a much larger light bar across the upper windshield.

Before buying one, check:

• Overall light bar width
• Bracket spacing
• Mounting location
• Clearance around the windshield and hood
• Wiring requirements
• Manufacturer fitment information

20-Inch vs 50-Inch LED Light Bar

A smaller light bar is usually easier to mount and creates less aerodynamic noise. It may also be easier to aim without reflecting excessive light from the hood.

A 50-inch LED light bar provides much more coverage and gives a Wrangler a traditional off-road appearance, but windshield-mounted bars can create additional wind noise and glare if they are positioned poorly.

For drivers who mainly want trail illumination, bigger is not automatically better. Beam pattern and mounting location can matter more than overall width.

Spot, Flood, or Combo Beam?

A spot beam projects light farther ahead and is useful for open trails.

A flood beam spreads light across a wider area and can help on slower technical trails.

A combo beam combines both characteristics and is a popular choice for general off-road use.

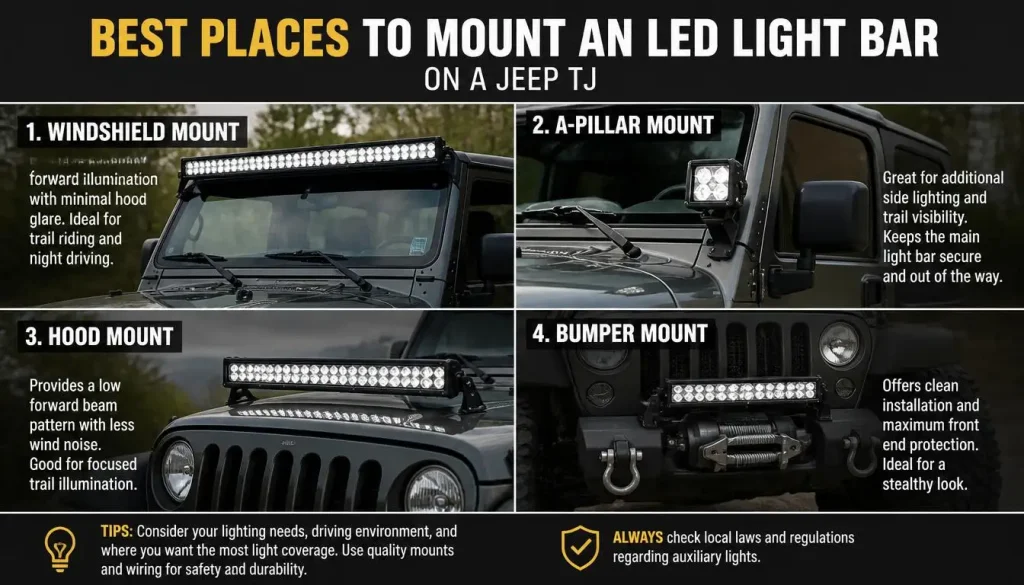

Best Places to Mount an LED Light Bar on a Jeep TJ

There are several practical mounting positions.

Windshield or A-Pillar Mount

Windshield mounts are among the most recognizable Wrangler TJ setups.

Advantages include:

• High mounting position
• Wide forward coverage
• Space for larger light bars
• Strong off-road appearance

Possible disadvantages include:

• Wind noise
• Hood glare
• More exposed wiring
• Extra height

Hood Mount

A hood-mounted light bar sits lower and can be easier to install.

It may also produce less wind noise than a large roof-level light bar.

Make sure the light does not interfere with opening the hood.

Bumper Mount

Bumper installation is a clean option for owners who want the light bar to remain relatively low.

Benefits include:

• Shorter wiring route
• Less wind noise
• Lower profile
• Easier access

The downside is that the lower mounting position may reduce long-distance illumination compared with a windshield-mounted bar.

Before You Start the Installation

Park your Jeep on a flat surface and switch off the ignition.

Disconnect the negative battery terminal before making electrical connections.

Check the light bar, brackets, hardware, and wiring harness before installation. Missing hardware is much easier to deal with before half the Jeep has been taken apart.

You should also protect painted surfaces around the mounting area with masking tape or a soft cloth.

How to Install LED Light Bar on Jeep Wrangler TJ

The following steps describe a typical windshield or A-pillar installation. Your brackets may use slightly different mounting points.

Step 1: Test-Fit the Brackets

Before tightening anything, place the brackets against their mounting positions.

Confirm that:

• The brackets match the Jeep
• Bolt holes align correctly
• Both sides sit evenly
• The light bar will fit between the brackets

Never force a bracket into position.

Step 2: Remove the Required Factory Bolts

Many Jeep TJ windshield light bar brackets use existing mounting points around the windshield frame.

Use the correct Torx bit or socket for your hardware.

Factory bolts on an older TJ may be tight or slightly corroded. Apply steady pressure rather than forcing the tool at an angle, because damaged Torx heads can turn a simple installation into a much longer job.

Step 3: Install Rubber Pads or Gaskets

If your kit includes rubber pads, foam strips, or gaskets, install them between the bracket and painted body surface.

These can help:

• Protect the paint
• Reduce vibration
• Prevent metal-to-metal contact

Step 4: Install the Mounting Brackets

Position both brackets and reinstall the mounting bolts.

Leave them slightly loose at first.

This gives you enough movement to align the light bar before everything is tightened.

Step 5: Position the LED Light Bar

Carefully place the LED light bar between the brackets.

Large 50-inch light bars can be awkward to handle alone, so having another person support one side makes the job easier and reduces the chance of scratching the Jeep.

Insert the mounting bolts and tighten them enough to hold the light securely.

Do not fully lock the angle yet.

Step 6: Center the Light Bar

Stand in front of the Jeep and check that the light bar is centered.

Look at it from several angles.

Small alignment errors are much easier to correct now than after the wiring is finished.

Step 7: Tighten the Mounting Hardware

Once everything is aligned correctly, tighten the bracket hardware according to the bracket manufacturer’s instructions.

Avoid overtightening bolts into the windshield frame.

The goal is secure mounting, not maximum possible force.

Can You Install a Jeep TJ LED Light Bar Without Drilling?

In many cases, yes.

TJ-specific windshield, A-pillar, hood, and bumper brackets are often designed to use existing factory mounting locations.

A bolt-on bracket is usually preferable because it avoids creating unnecessary holes in the Jeep.

However, drilling may occasionally be required for a custom installation or switch placement.

If you must drill through sheet metal:

• Confirm there is nothing behind the drilling location
• Use an appropriate grommet
• Protect bare metal from corrosion
• Seal the opening properly

Never pass an electrical wire directly through a sharp metal hole.

Jeep Wrangler TJ LED Light Bar Wiring Diagram

Most basic relay-controlled LED light bar systems follow this layout:

Battery Positive → Inline Fuse → Relay → LED Light Bar

The light bar also needs a ground connection.

The switch controls the relay rather than carrying the full current required by the light bar.

A simplified arrangement looks like this:

Battery → Fuse → Relay → Light Bar → Ground

and

Switch → Relay Trigger

This configuration keeps the high-current circuit in the engine bay and allows a relatively low-current control circuit to operate the relay.

Why Use a Relay for an LED Light Bar?

A powerful LED light bar can draw considerably more current than a small dashboard switch should handle directly.

A relay acts as an electrically controlled switch.

When you press the cabin switch, the relay closes the higher-current circuit that supplies power to the light bar.

Benefits include:

• Lower electrical load through the dashboard switch
• Shorter high-current wiring path
• Better circuit control
• Easier fuse protection

If your light bar came with a complete relay harness, use it unless the manufacturer specifies a different installation method.

How to Wire the LED Light Bar on a Jeep Wrangler TJ

Step 1: Connect the Harness to the Light Bar

Connect the harness plug to the LED light bar.

If the wiring uses individual terminals instead of a waterproof connector, make sure polarity is correct.

Normally:

• Positive wire supplies power
• Negative wire connects to ground

Do not rely on wire color alone if the product instructions identify the wires differently.

Step 2: Route the Harness Toward the Engine Bay

For a windshield-mounted light bar, route the wire down the windshield or A-pillar area.

Keep it neat and protected.

Avoid leaving long sections of loose wire exposed where branches or pressure washing could damage them.

Step 3: Mount the Relay

Choose a secure location in the engine compartment.

The relay should be:

• Away from exhaust heat
• Away from moving belts or pulleys
• Protected from excessive water exposure
• Close enough to the battery for practical wiring

Mount it rather than leaving it loose inside the engine bay.

Step 4: Position the Inline Fuse

The fuse should normally be installed close to the battery positive connection.

The purpose of the fuse is to protect the wiring if a short circuit occurs.

If an unfused wire runs a long distance from the battery before reaching the fuse, that section of wire remains unprotected.

Step 5: Connect the Ground

Connect the light and harness ground to a clean, solid grounding point.

A poor ground is one of the most common causes of auxiliary-lighting problems.

If using a chassis ground:

1. Find a strong metal grounding point.
2. Remove rust, paint, or heavy contamination if necessary.
3. Secure the terminal firmly.
4. Protect the connection against corrosion.

Some harnesses are designed to connect directly to the battery negative terminal.

How to Run LED Light Bar Wires Through a Jeep TJ Firewall

The cabin switch needs a way to connect with the engine-bay wiring.

Fortunately, you may be able to use an existing firewall opening or factory grommet.

Look for an Existing Grommet

Inspect the firewall from both the engine compartment and cabin.

You may find a rubber grommet already carrying factory wiring.

If there is enough space, an additional switch wire can sometimes be passed through alongside the existing wiring without drilling a new hole.

Do not damage the factory harness.

Use a Rubber Grommet

Whenever a wire passes through metal, it must be protected from the edge.

A rubber grommet prevents vibration from slowly cutting through the insulation.

Route the Wire Carefully

Inside the cabin, keep the switch wire away from:

• Pedals
• Steering components
• Heater mechanisms
• Sharp brackets
• Areas where passengers can pull it

Use zip ties where appropriate.

Installing the LED Light Bar Rocker Switch

Choose a switch location that is easy to reach but does not interfere with driving.

Common locations include:

• Lower dashboard
• Center switch panel
• Custom auxiliary switch panel

If your switch requires a mounting hole, measure carefully before cutting.

Some illuminated rocker switches have additional terminals for their internal lighting. Follow the switch diagram instead of guessing based on terminal position.

Switched Power vs Constant 12V Power

A light bar relay trigger can sometimes be wired to constant battery power or to an ignition-switched source.

Constant Power

With constant power, the light bar can operate even when the ignition is off.

This is convenient when setting up camp or using the Jeep as a stationary work vehicle.

The drawback is that you can accidentally leave the light on and discharge the battery.

Ignition-Switched Power

With an ignition-switched trigger, the light bar can only operate when the Jeep’s selected accessory or ignition circuit is active.

This reduces the risk of accidentally leaving the light bar powered after parking.

Whichever method you use, do not tap randomly into factory wiring. Identify the circuit properly and protect any additional wiring according to the electrical load and installation design.

What Wire Gauge Does an LED Light Bar Need?

There is no single wire gauge that is correct for every LED light bar.

Wire size depends on:

• Light bar current draw
• Total circuit length
• System voltage
• Allowable voltage drop
• Wiring environment

A high-power light bar requires heavier wiring than a small auxiliary LED pod.

If your light bar includes a correctly rated manufacturer wiring harness, using that harness is usually the simplest option.

If building your own harness, calculate the current draw and select wire that safely carries the load over the complete circuit length.

How to Determine LED Light Bar Current Draw

If the manufacturer provides amperage, use that figure.

If only wattage is listed, a simplified estimate for a 12-volt system is:

Current (amps) = Power (watts) ÷ Voltage

For example, a 120-watt light theoretically draws around 10 amps at 12 volts.

Real operating voltage and actual product consumption can differ, so manufacturer specifications are preferable to estimates.

What Fuse Size Should You Use for an LED Light Bar?

Do not choose a fuse simply because another Jeep owner uses that size.

The correct fuse depends on the circuit’s actual current draw and the wire’s safe capacity.

The fuse should:

• Handle normal operating current
• Protect the circuit from excessive current
• Never exceed what the wiring can safely carry

If the light bar comes with a manufacturer-supplied harness and fuse, use the specified fuse rating.

Never install a larger fuse just because the original fuse keeps blowing. A repeatedly blown fuse usually indicates an electrical problem that needs to be diagnosed.

Protecting the Wiring

A neat installation is usually a safer installation.

Use split wire loom or similar protective covering where wiring runs through the engine compartment.

Keep wires away from:

• Exhaust components
• Radiator fans
• Serpentine belt
• Steering shaft
• Sharp metal edges
• Hinges
• Hot engine parts

Secure wiring with zip ties or proper cable clamps.

Avoid pulling wires so tightly that engine movement or body flex puts tension on the terminals.

Waterproofing Electrical Connections

Wranglers frequently see rain, mud, dust, and water, so weather protection matters.

For exposed connections, consider:

• Weatherproof connectors
• Adhesive-lined heat-shrink tubing
• Protective wire loom
• Properly sealed grommets
• Corrosion-resistant terminals

Do not simply wrap a poor connection in layers of electrical tape and expect it to remain reliable.

Connecting the Battery

Once all wiring has been routed and checked, connect the harness to the battery according to the wiring diagram.

Typically, the fused positive wire connects to the positive terminal and the ground connects to the battery negative terminal or an approved chassis ground.

Keep tools from bridging the positive battery terminal to grounded metal.

Reconnect the Jeep’s negative battery terminal after all connections have been completed.

Test the LED Light Bar Before Finishing the Installation

Do not immediately bundle every wire and reinstall every trim panel.

Test the system first.

Turn on the Jeep if required by your wiring setup and activate the light bar switch.

Confirm that:

• The light bar turns on
• All LEDs illuminate properly
• The switch works normally
• The relay operates
• No fuse blows
• Wires do not become unusually warm

After confirming everything works, turn the light off and secure the remaining wiring.

How to Aim a Jeep TJ LED Light Bar

A light bar mounted too high can waste usable light and create unnecessary glare.

Park the Jeep on level ground facing a wall or open area.

Loosen the light bar mounting bolts enough to adjust the angle.

Aim the beam toward the area where you actually need illumination rather than pointing it directly upward.

Once the position is correct, tighten the mounting hardware.

Reduce Hood Glare

Windshield-mounted lights can reflect from the hood, especially on light-colored or glossy paint.

If glare is distracting:

• Tilt the light slightly upward or downward to find a better angle
• Verify that the bar is not aimed directly at the hood
• Consider a lower mounting position
• Use a beam pattern suited to the intended application

Test the setup at night before deciding the final angle.

Common Jeep Wrangler TJ LED Light Bar Problems

LED Light Bar Won’t Turn On

Check:

1. Battery connection
2. Inline fuse
3. Relay
4. Switch
5. Ground connection
6. Light bar connector
7. Voltage at the light connector

A multimeter can help identify where power is being lost.

Relay Clicks but the Light Bar Stays Off

A clicking relay suggests the control side may be working, but the main power circuit may still have a problem.

Check:

• Fuse
• Relay output
• Battery feed
• Light bar connector
• Ground connection

LED Light Bar Flickers

Flickering often points to an unstable electrical connection.

Inspect:

• Battery terminals
• Ground
• Relay terminals
• Connectors
• Crimp joints
• Harness damage

Fuse Keeps Blowing

Do not replace it repeatedly with larger fuses.

Look for:

• Pinched wiring
• Damaged insulation
• Shorted connectors
• Incorrect wiring
• Defective light bar
• Undersized circuit components

Find the cause before using the light again.

Light Bar Drains the Battery

If the light bar can operate with the ignition off, confirm that it is not being left on accidentally.

Also check illuminated switches because some wiring configurations can keep the switch light powered continuously.

A switched relay trigger may be useful if accidental battery drain is a recurring concern.

How to Stop a Jeep TJ Light Bar From Whistling

Windshield-mounted LED bars sometimes create a whistle or hum at road speed.

Air moving across the cooling fins can produce vibration and noise.

Possible solutions include:

• Adjusting the light bar angle
• Checking bracket alignment
• Tightening loose hardware
• Using a purpose-designed wind-noise damper
• Applying suitable trim to problem cooling fins when recommended by the light manufacturer

Do not cover cooling surfaces in a way that traps excessive heat.

How to Fix Light Bar Vibration or Rattling

If the bar vibrates on rough roads, check the mounting system.

Look for:

• Loose bracket bolts
• Loose side bolts
• Missing washers
• Damaged rubber pads
• Flexing brackets

Tighten hardware appropriately, but do not overtighten bolts simply to stop vibration.

A poor-quality or overly flexible bracket may need to be replaced.

Common LED Light Bar Installation Mistakes to Avoid

Several mistakes cause unnecessary problems.

Skipping the Fuse

A fuse is an essential circuit-protection device.

Do not operate a high-current auxiliary light with an unprotected battery feed.

Using Undersized Wire

Thin wire can create voltage drop and excessive heat.

Select wiring based on current draw and circuit length.

Using an Oversized Fuse

A fuse that is too large may fail to protect the wiring adequately.

Poor Ground Connection

Rust, paint, loose bolts, and contaminated metal can create high resistance.

Running Wires Near Heat

Keep wiring away from the exhaust manifold and other high-temperature components.

Allowing Wires to Rub Against Metal

Engine vibration can slowly damage insulation.

Use grommets and protective loom.

Overtightening Brackets

Overtightening can damage hardware, brackets, mounting surfaces, or threaded holes.

Ignoring Waterproofing

Off-road vehicles regularly encounter environments that can corrode exposed electrical connections.

Jeep TJ Windshield vs Hood vs Bumper Light Bar: Which Is Best?

There is no perfect mounting position for every Jeep.

A windshield-mounted light bar works well when maximum coverage and a high mounting position are priorities.

A hood-mounted light can offer a good balance between coverage and accessibility.

A bumper-mounted light is often the cleanest option for reducing wind noise and keeping wiring short.

Consider your actual driving environment before choosing a location.

For many owners, a smaller, correctly aimed bumper or hood light provides more practical illumination than an extremely large windshield bar.

Is an LED Light Bar Legal on a Jeep Wrangler TJ?

Auxiliary-lighting rules vary significantly by country, state, province, territory, and sometimes by the type of road.

A light bar that is acceptable for off-road use may not be legal to operate on public roads.

Depending on where you live, regulations may cover:

• Mounting height
• Number of forward-facing lights
• Beam intensity
• Light color
• Required covers
• When auxiliary lights can be used
• Whether lights must operate with high beams

Drivers in the USA, UK, Canada, and Australia should check the rules that apply specifically to their location before using an LED light bar on public roads.

When in doubt, treat the light bar as off-road equipment.

Jeep Wrangler TJ LED Light Bar Maintenance

Once installed correctly, an LED light bar requires relatively little maintenance.

Still, inspect it occasionally.

Check the Mounting Bolts

Off-road vibration can loosen hardware over time.

Inspect the brackets periodically and after particularly rough trail use.

Inspect the Wiring

Look for:

• Chafing
• Cracked insulation
• Loose zip ties
• Damaged loom
• Corrosion
• Loose terminals

Clean the Lens

Mud and road grime reduce light output.

Clean the lens using a method approved by the light manufacturer.

Check the Connections

If the Jeep is regularly exposed to water or mud, inspect electrical connectors for moisture and corrosion.

Recheck the Beam Angle

Repeated vibration can slowly change light-bar alignment.

Readjust it if the beam no longer points where intended.

Frequently Asked Questions

What size LED light bar fits a Jeep Wrangler TJ?

Wrangler TJs can use several light bar sizes depending on the mounting location. Large windshield bars and smaller hood or bumper-mounted bars are available. Always verify bracket and vehicle compatibility before purchasing.

Can I install a 50-inch LED light bar on a Jeep Wrangler TJ?

Yes, 50-inch windshield-mounted setups are available for the Jeep Wrangler TJ. You need compatible brackets and enough clearance for the specific light bar.

Can I install a Jeep TJ light bar without drilling?

Often, yes. Many TJ-specific brackets use existing windshield, hood, or bumper mounting points. Check your bracket instructions before drilling holes.

Do I need a relay for an LED light bar?

A relay is strongly recommended for many high-current auxiliary lighting systems and is commonly included in dedicated light bar wiring harnesses. Follow the electrical requirements supplied with your light.

Where should the relay be mounted?

Mount it securely in the engine compartment away from extreme heat, moving components, and excessive water exposure.

Where should the LED light bar fuse be installed?

An inline fuse is normally positioned close to the battery positive connection so that most of the power wire remains protected.

What fuse size should I use?

Use the fuse specified by the light bar or wiring harness manufacturer. If building a custom circuit, select the fuse according to current draw and wire capacity rather than choosing a random amperage.

What wire gauge should I use for a Jeep TJ light bar?

Wire gauge depends on the light’s current draw and total wire length. Use the manufacturer’s harness when available or calculate the required gauge for your circuit.

How do I run light bar wires through a Jeep TJ firewall?

Look for an existing factory wiring grommet or unused rubber pass-through. Protect any wire passing through metal with a proper grommet and avoid interfering with pedals or factory wiring.

Why is my Jeep TJ light bar whistling?

Airflow across a windshield-mounted light bar’s cooling fins or mounting structure can create a whistle. Adjusting the angle, checking mounting hardware, or using a proper wind-noise damper may help.

Why does my LED light bar flicker?

Common causes include a poor ground, loose connector, failing relay, weak crimp connection, or damaged wiring.

Why does the relay click but the light bar not turn on?

The relay control circuit may be working while the main lighting circuit has lost power. Check the fuse, relay output, battery connection, ground, and light connector.

Will an LED light bar drain my Jeep battery?

It can if it remains powered while the engine is off. Using an ignition-switched relay trigger can reduce the risk of accidentally leaving the light on.

Can I wire my LED light bar to the high beams?

Some auxiliary-light setups can be triggered with the high-beam circuit, but wiring methods and road regulations vary. Use a proper relay-based circuit and verify local regulations before doing this.

Are LED light bars street legal?

That depends on your location and how the light is mounted and used. Many auxiliary lights are intended primarily for off-road use. Check local road-lighting regulations before using one on public roads.

Final Thoughts

Learning how to install an LED light bar on a Jeep Wrangler TJ is not only about bolting a light above the windshield. A reliable installation depends on choosing the correct mounting position, securing the brackets properly, using a fused relay circuit, protecting the wiring, creating a solid ground, and routing the switch wire safely through the firewall.

Take your time with the electrical side of the job. Test everything before hiding the wires, and never compensate for an electrical problem by installing a larger fuse.

Once the system works correctly, aim the light where it is actually useful and check the mounting hardware after your first few drives.

A carefully installed Jeep TJ LED light bar can provide years of useful off-road illumination without loose wires, battery problems, blown fuses, excessive vibration, or unnecessary electrical headaches.
