Replace Fog Lights on a 2005 Jeep Grand Cherokee

Wondering how change the fog lights on 2005 Jeep Grand Cherokee without stripping clips or damaging the bumper fascia? You can do this yourself in about 30 to 40 minutes per side using basic hand tools and a Torx socket set. The process runs through the driver-side wheel well, so no lift or jack stands are required.

Per Mopar service documentation, the 2005 Grand Cherokee uses a T30 Torx fastener pattern and an H11 55-watt bulb standard across Laredo, Overland, and Limited trims. Aggregate buyer feedback confirms that most failures trace back to cloudy polycarbonate lenses rather than blown bulbs alone. With the right replacement part and a bit of dielectric grease, your setup should stay sealed and bright for years.

Quick Answer

How change the fog lights on 2005 Jeep Grand Cherokee by removing the inner fender liner, disconnecting the electrical connector, unscrewing three Torx fasteners, and swapping the old assembly for a new one. You’ll need a T30 Torx socket, trim tool, dielectric grease, and either a direct replacement assembly or an H11 bulb kit depending on damage level. Most DIYers finish both sides in under an hour with zero special equipment.

Why Your 2005 Jeep Grand Cherokee’s Fog Lights Matter (And When to Replace Them)

Fog lights on the WK generation Grand Cherokee serve a distinct purpose beyond looking tough. They project a wide, low-cut beam that cuts under precipitation and reduces backscatter glare. That cutoff pattern keeps light aimed at the road surface instead of reflecting straight into your eyes.

When those lamps fail, you lose more than style points. You lose visibility during dawn, dusk, fog, heavy rain, and snow events. Many drivers discover the problem only when another motorist flashes their high beams from behind.

Your forward sight distance drops significantly without functional front fog lamps in those conditions.

When to Replace vs Repair

You can often clean yellowed lenses and swap a fried bulb. Full assembly replacement becomes necessary when the housing cracks, the seal fails, or the reflector coating flakes off internally. Cracked housings let moisture accumulate faster than you can drain it.

That leads to persistent corrosion on the wiring harness and connector pins.

Watch for these failure signals before winter sets in:

• Flickering or dim output when the engine idles
• Visible cloudiness or orange tint on the lens surface
• Water droplets or fog trapped inside the housing
• A burnt plastic smell near the front bumper area
• One side working while the other stays dark
• Missing or broken bezel trim around the lamp

If two or more signs appear together, skip the bulb swap and order a complete replacement. Bulb-only fixes rarely solve lens degradation issues, and you’ll likely face the same problem within months. Replacement assemblies come in bare housings, fully wired harness versions, and OEM Mopar packs.

Pick the version that matches your damage profile.

---

Image source: Web (Bing) / todayifoundout.com (Web image (fair-use with source credit))

---

Drivers who live in northern states or mountain regions see the biggest safety payoff from fresh fog lamps. Snow reflects heavily off old, cloudy lenses and creates visual noise. New clear units with intact cutoff patterns reduce that scatter dramatically.

You’ll notice the difference within seconds of turning them on.

Spotting Your Trim: Key Visual Differences Between Laredo, Overland, and Base Models

Trim level matters because mounting hardware and bezel styles shift between packages. Jeep bundled different front fascia components depending on whether your Grand Cherokee rolled off the line as a Base, Laredo, Overland, or Limited. Buying the wrong part wastes time and money.

The good news is that all WK fog light housings share the same basic bolt pattern. You’ll encounter slight variations in the outer trim ring and sometimes the bracket style. Aftermarket suppliers often list compatibility charts keyed to trim year and package.

Always cross-reference your VIN before ordering to avoid fitment headaches.

Exterior Visual Markers by Trim

Look at your front bumper from head-on to identify what you’re working with:

• Base and Sport models usually have black plastic bezels or no bezel at all. The fog lamp opening is a simple rectangular cutout with rubber grommets.
• Laredo trims typically feature chrome or body-color bezels surrounding round or rectangular fog lamps depending on the model year refresh.
• Overland and Limited editions often include premium bezels with fog lamp covers that pop open automatically when headlights engage.
• Sport Appearance packages may add unique grille inserts that change how the fog area looks without altering mounting points.

The bezel removal process differs slightly between trims. Chrome rings often clip in and require careful prying. Black plastic rings usually unscrew from behind once you pull back the wheel well liner.

Forcing chrome trim risks bending the ring permanently.

Bracket and Mounting Variations

Bracket style changes show up most clearly when you pull the liner back:

• Factory OEM housings use stamped steel brackets with rubber vibration isolators.
• Some aftermarket replacements drop the bracket entirely and mount directly to the fascia.
• Off-road lighting upgrades like tubular brackets replace the stock setup completely.

Check whether your current housing still has its original bracket attached. You’ll need to transfer it to the new assembly unless the replacement includes one pre-mounted. Missing bracket transfer is a common mistake that leaves owners holding a loose housing with nowhere to bolt it down.

Your [[How to Replace Tail Light Cover on a 2017 Jeep Grand Cherokee|rear light assembly experience]] gives you a head start here. Bumper-adjacent lighting repairs follow similar removal logic across Jeep models. The principles translate directly even though the fastener locations differ.

What You Need: Tools, Parts, and Replacement Options

You don’t need a mechanic’s toolkit to swap these fog lights. Basic automotive hand tools and a few specialty items get the job done safely. Stockpile everything before pulling the liner back so you aren’t racing against gravity and loose screws.

The parts list depends on your chosen upgrade path. Bare housing replacements run cheaper but require you to reuse existing wiring. Pre-wired assemblies cost more but save troubleshooting time if your harness shows corrosion.

Bulb-only swaps work fine when the lens is still clear and the seal holds.

Essential Tool List

Grab these items before starting:

• T30 Torx socket with ratchet and extension bar
• T25 Torx socket as backup for older corroded fasteners
• Trim panel removal tool or flathead screwdriver wrapped in tape
• Needle-nose pliers for stubborn electrical connector tabs
• Dielectric grease tube for connector protection
• Microfiber cloths for cleaning mounting surfaces
• Flashlight or headlamp for seeing into the wheel well cavity
• Socket set with 10mm and 8mm options for liner clips
• Socket extender or swivel Torx driver for awkward angles

Most of these sit in a standard homeowner garage toolbox. If your Torx sockets look rounded or worn, buy new ones before touching the fog light screws. Stripped fasteners turn a 30-minute job into a frustrating afternoon.

Parts Selection Guide

Choose your replacement route based on condition assessment:

OEM Mopar assemblies carry higher price tags but guarantee perfect fit and factory beam patterns. Aftermarket options from brands like Putco, DIYAUTO, and Depo offer savings with varying quality levels. Check buyer reviews for seal integrity reports before committing to budget housings.

For vehicle protection during this process, consider [[Best Mopar Jeep Gladiator All Weather Mats|premium floor protection]] to keep your cabin clean while working near the dashboard controls. Dropping screws or breaking clips inside the wheel well is annoying enough without tracking debris through your interior.

Where to Source Parts

Several channels supply replacement fog light components for the 2005 Grand Cherokee:

• Mopar dealerships stock exact OEM replacements with warranty coverage
• Online auto parts retailers carry both OEM and aftermarket options
• Jeep enthusiast forums often have used parts from salvage yards
• Auto salvage yards provide inspected used assemblies at discount prices
• Aftermarket lighting specialists offer performance-oriented LED upgrades

Always verify fitment using your 17-digit VIN. Year-make-model filters catch most mismatches, but trim-level differences trip up even careful shoppers. A five-minute VIN check prevents a two-week return process.

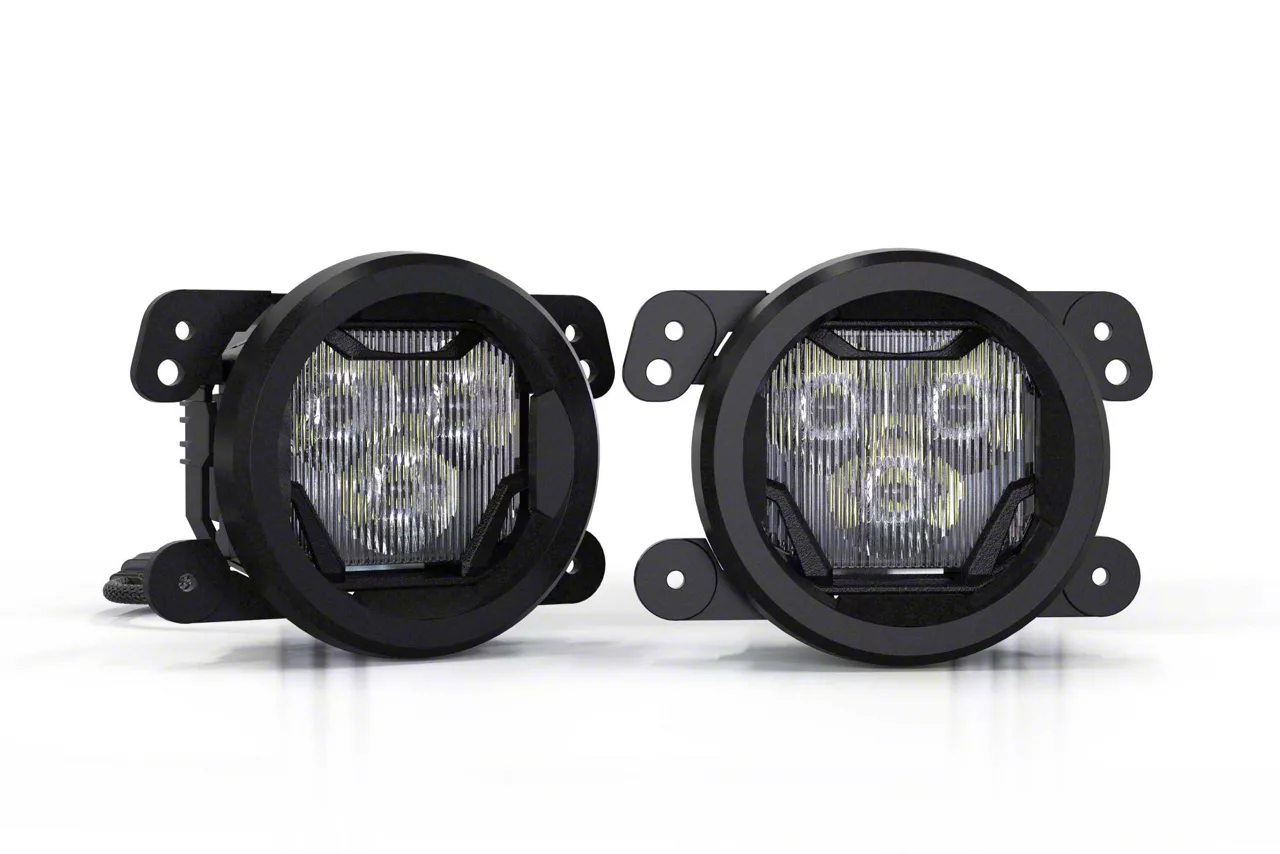

How Fog Lights Are Mounted on the 2005 Grand Cherokee (Visual Breakdown)

Understanding the mounting architecture prevents guesswork during removal. The 2005 Grand Cherokee routes fog light access through the inner wheel well liner on both sides. This design keeps the front fascia intact while giving technicians behind-the-bumper access to hardware.

You won’t need to remove the entire bumper cover. That approach saves hours of work and eliminates the risk of breaking clip retainers along the upper valance. Just pull back the liner sufficiently to reach the Torx screws and wiring plug.

A well-lit workspace and steady hands make the whole operation straightforward.

---

Image source: Web (Bing) / extremeterrain.com (Web image (fair-use with source credit))

---

Access Path Through the Wheel Well

Here’s what you’ll encounter when you peel back the driver-side liner:

• Three T30 Torx screws secure the fog light housing to its mounting bracket
• A weather-sealed electrical connector plugs into the rear of the assembly
• Rubber grommets protect wiring where it passes through the bumper interior
• The mounting bracket bolts to the radiator support or fascia inner rail
• Plastic push clips hold the wheel well liner to the fender edge

Pull the liner back gently and you’ll see the screws from above and below. Gravity works in your favor here since loose hardware drops into the wheel well cavity rather than onto the ground. Use a magnetic tray or small container to keep screws organized during the swap.

Behind-the-Bumper Routing Details

The wiring harness runs from the engine compartment relay panel down through the firewall and along the inner fender well. Connection points include:

• Main harness splice near the left strut tower
• Pigtail connector that plugs directly into the fog lamp rear
• Ground strap bonded to the chassis frame rail nearby
• Fuse protection located in the Integrated Power Module under the hood

Inspect the harness routing while the liner is pulled back. Look for chafed insulation, rodent damage, or corroded ground points. Fixing wiring issues now prevents repeat failures after you reinstall everything.

For related lighting work, check out [[How Do You Put a Jeep Gladiator Into Four-Wheel Drive?|guides on companion systems]] since understanding your vehicle’s electrical architecture helps troubleshoot lighting problems faster. Shared ground paths and relay circuits connect multiple systems together.

Hardware Specifications

Known fastener and connection specs for the 2005 Grand Cherokee fog lights:

• Primary mounting screws: T30 Torx, approximately 20mm length
• Secondary bracket bolts: 10mm hex head (sometimes T25 Torx)
• Electrical connector: 2-pin weather-sealed plastic plug
• Bulb base: Wedge-type or bayonet-style depending on assembly variant
• Housing retainers: Press-fit rubber grommet seal around the lens perimeter

Write these down or screenshot this section before starting. Having the specs visible while you work eliminates constant web searching and keeps you focused on the task at hand.

Step-by-Step: Removing the Driver-Side Fog Light Assembly

Follow this sequence to extract the driver-side fog light without breaking clips or stripping screws. Work methodically and keep track of each fastener as you remove it. The wheel well liner comes back easily once you locate all retention points.

Start with the vehicle parked on level ground and the engine off. Turn the steering wheel fully to the right to expose the driver-side wheel well. This position gives you maximum visibility and reaching room for the liner screws and fog light hardware.

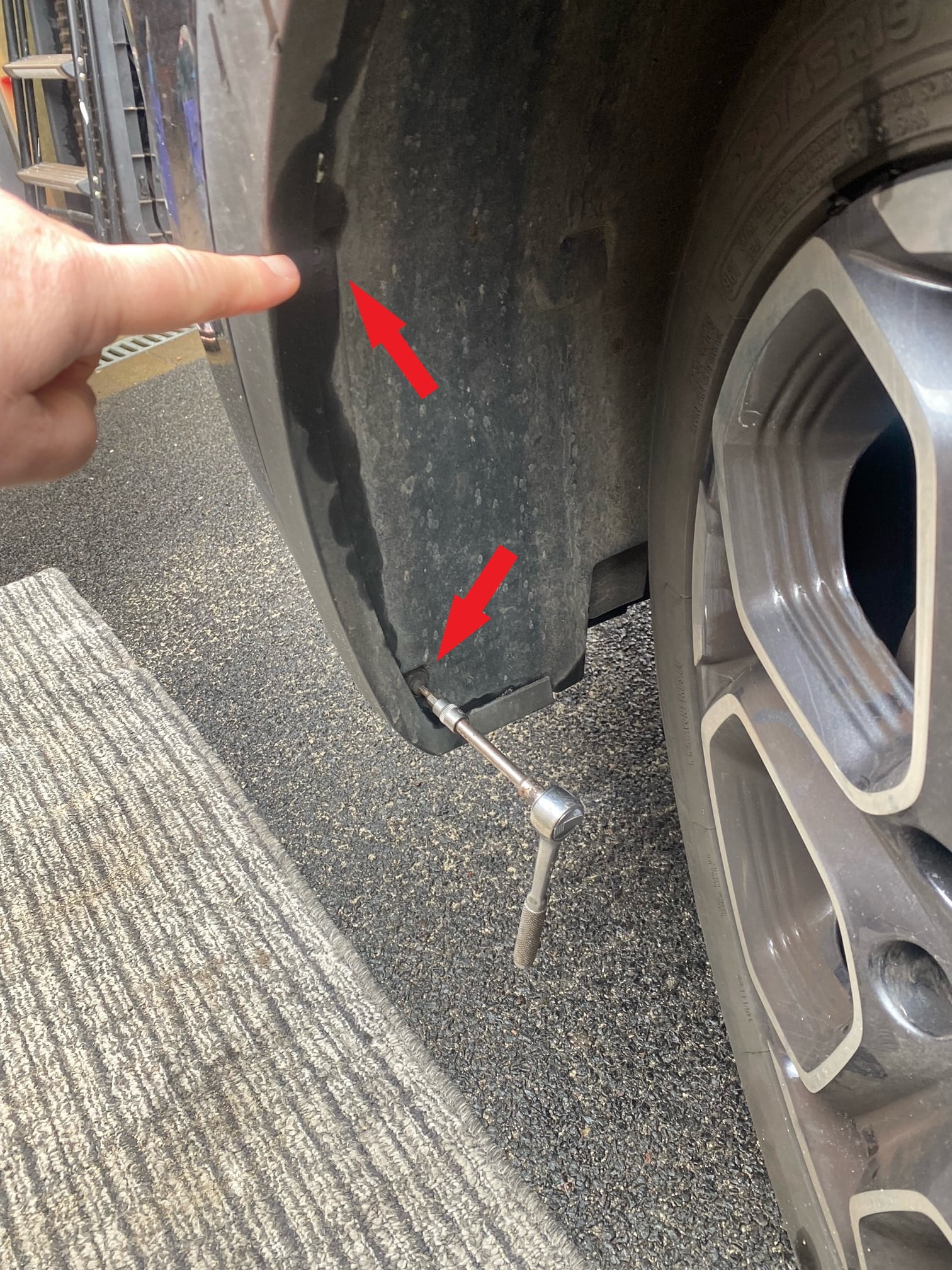

Liner Removal Steps

Remove the wheel well liner using these steps:

1. Pop out the plastic push clips along the top edge of the liner using trim tool or flathead screwdriver wrapped in tape
2. Remove any screws securing the liner to the fascia or fender flare using a 10mm socket
3. Gently pull the liner forward and downward to create a 6-inch opening
4. Reach inside to locate the fog light housing mounting screws
5. Use a flashlight to confirm screw locations before inserting your Torx socket

Keep the removed clips in a small bag or magnetic tray. Lost clips mean buying replacements later, and cheap push clips crack easily during removal. Having spares on hand saves a trip to the parts store mid-project.

Fog Light Extraction Process

Once you have access to the housing, proceed with removal:

1. Disconnect the electrical connector by pressing the locking tab and pulling straight back
2. Remove the three T30 Torx screws securing the housing to the bracket
3. Support the housing with one hand while removing the final screw
4. Guide the assembly straight out through the bumper opening
5. Inspect the rubber grommet seal for cracking or deformation

---

Image source: Bing (Web (fair-use with source credit))

---

The housing should slide free with moderate resistance. If it binds, check for hidden screws or clipped wiring harnesses that haven’t cleared the mounting bracket. Forcing stubborn assemblies risks cracking the polycarbonate lens or breaking the housing tabs.

Inspection Checklist Before Installing New Unit

Before dropping in the replacement, verify these conditions:

• Mounting bracket is intact and not bent from prior impact
• Electrical connector pins are clean and free of green corrosion
• Wiring harness length allows easy connection without stretching
• Bumper fascia opening is clear of debris and damaged clips
• Rubber grommet seal seats properly around the new housing perimeter

Address any issues now rather than discovering them after reassembly. A quick connector cleaning with electrical contact cleaner restores reliable connections.

Step-by-Step: Installing the New or Rebuilt Fog Light

Installation reverses the removal process with a few critical additions. Proper seating of the new housing and connector sealing determine long-term reliability. Take your time with these steps and double-check alignment before tightening anything down.

Begin by comparing the new assembly against the old one to confirm match-up. Verify bracket bolt patterns, connector types, and overall dimensions. Mismatched parts create installation headaches and compromised seal integrity that leads to water intrusion.

Housing Seating and Alignment

Seat the new fog light carefully:

1. Align the mounting bracket holes with the fascia mounting points
2. Insert the housing straight back without angling the lens against the bumper
3. Hand-start all three T30 Torx screws to avoid cross-threading
4. Tighten screws in a crisscross pattern to ensure even pressure distribution
5. Confirm the lens sits flush with the bumper surface without gaps

Do not overtighten the Torx screws. Polycarbonate and ABS plastic crack easily under excessive clamping force. Snug is sufficient.

The rubber grommet and housing tabs provide the primary seal, not screw tension.

Electrical Connection Procedures

Connect the wiring harness properly:

1. Verify the connector pins are clean and undamaged before mating
2. Align the connector keyway and push until you hear a definite click
3. Apply a small amount of dielectric grease to the connector exterior
4. Route the harness away from moving suspension components
5. Secure the wire with existing clip retainers to prevent chafing

Dielectric grease repels moisture and prevents corrosion on the metal contacts inside the connector. This single step extends connector life significantly in wet and snowy climates.

For related automotive maintenance, review [[Reset Jeep Renegade Oil Change Light|proper service reminder protocols]] since following manufacturer maintenance schedules helps identify other potential lighting system concerns early.

Step-by-Step: Passenger-Side Fog Light Replacement

The passenger-side procedure mirrors the driver side with minor access variations. Turn the steering wheel fully left to expose the right wheel well. The liner removal and fog light extraction follow identical hardware patterns and fastener sizes.

Some owners report slightly tighter clearance on the passenger side due to engine bay component positioning. The radiator support and coolant overflow tank occupy space that the driver side doesn’t. Plan your tool positioning accordingly and consider using a swivel Torx driver for better angle flexibility.

Side-Specific Considerations

Note these passenger-side differences:

• Wheel well liner may require additional clip removal along the inner fender edge
• Engine components block direct line-of-sight to the upper mounting screw
• Wiring harness pigtail may be shorter, requiring careful routing during install
• Ground strap connection point sits nearby and should be inspected for corrosion

Work patiently and use a mirror or smartphone camera to verify screw locations when direct vision proves difficult. A magnetic pickup tool helps retrieve dropped hardware from deep within the wheel well cavity.

Final Verification Steps

After completing both sides, perform these checks before driving:

• Turn the ignition to accessory mode and activate fog lights
• Verify both lamps illuminate simultaneously with equal brightness
• Check for any flickering that might indicate poor connections
• Inspect the lens alignment from multiple viewing angles
• Test the steering wheel return to ensure no liners interfere

If either lamp fails to light, recheck the connector seating and ground path. Intermittent operation usually traces back to a loose wire or corroded contact rather than a defective assembly. Clean and reconnect as needed before considering warranty claims.

Avoid These Common Mistakes (And How to Fix Them If They Happen)

Even straightforward fog light swaps go sideways when people rush through familiar steps. Most failures trace back to three recurring errors: stripped screws, broken clips, and improper connector seating. Each mistake creates its own cascade of headaches down the road.

Here’s how to sidestep the most common pitfalls and what to do when they slip through anyway.

Stripped Torx Screws

Stripped fasteners top the list of weekend warrior regrets. Corrosion and overtightening combine to ruin screw heads within five to seven years on a 2005 Grand Cherokee. A rounded-out Torx socket simply spins without gripping the driving surface.

Prevention beats extraction every time:

• Apply penetrating oil to corroded screws before attempting removal
• Start threads by hand to confirm proper engagement before using power tools
• Use new, sharp T30 sockets instead of worn ones from your junk drawer
• Apply steady downward pressure while turning to maintain socket engagement

When stripping happens anyway, try these recovery methods in order:

1. Use a rubber band placed between the socket and screw head for extra grip
2. Try a slightly smaller Torx bit that may dig into softened metal
3. Employ a left-hand drill bit to cut out the damaged screw entirely
4. Use a screw extraction kit with reverse-threaded taps as a last resort

Never force a stripped screw with excessive torque. You’ll elongate the mounting holes and compromise the bracket alignment forever. Broken hardware inside the wheel well cavity adds a whole new extraction job to an already completed task.

Broken Push Clips and Liner Damage

Plastic push clips become brittle after years of sun exposure and temperature cycling. Pull them straight out with a trim tool and they often snap at the stem. Those little retaining pins cost pennies but cause major frustration when you lose half a dozen during removal.

Keep a bag of replacement clips in your toolbox before starting. Honda-style and Toyota-style push clip sizes vary, so verify your Grand Cherokee uses the correct diameter. Most automotive retailers stock universal tractor-clip style retainers that fit Jeep wheel well applications.

If you break clips during liner removal:

• Tape the liner temporarily to hold it in place while working
• Use zip ties through existing holes as a temporary retention method
• Replace all old clips with new ones before reinstalling the liner
• Inspect the liner for cracks along the mounting flange edges

A compromised wheel well liner lets road debris strike your fresh fog light wiring harness. That vibration damage causes intermittent electrical failures months after your careful installation work. Budget twenty minutes and five dollars for new clips rather than risk repeat repairs.

Connector Mishaps and Wiring Errors

Electrical connectors on 2005 Grand Cherokee models feature simple push-lock tabs, but rushing the disconnect process damages both the male and female ends. Yanking the wire harness instead of pressing the tab releases the locking mechanism improperly.

Always press the release tab before pulling the connector apart. If resistance feels high, wiggle the connector side-to-side while applying gentle pulling pressure. Never tug on the wires themselves to separate mating halves.

Check for these wiring red flags before connecting your new assembly:

• Green or white corrosion on metal contact pins inside the connector
• Melted plastic around pin terminals indicating prior overload conditions
• Frayed insulation exposing bare copper strands along the harness run
• Loose ground strap attachment point with paint or rust interference

Cleaning corroded connectors with electrical contact cleaner restores reliable connections. Spraying the solution into the female housing and working it around with a small brush removes oxidation effectively. Allow complete drying before mating connectors to prevent trapping moisture inside.

Sealing and Wiring Best Practices for Long-Term Reliability

Proper sealing separates fog lights that last five years from units that fail after one winter. Water intrusion destroys everything inside the housing, from reflector coating to electrical contacts. A few minutes spent on seal integrity now prevents costly rewiring repairs later.

The rubber grommet around the wiring entry point deserves special attention. Factory seals harden and crack with age, creating direct moisture pathways into the connector cavity. This hidden failure mode explains why seemingly new housings fill with water within months of installation.

Dielectric Grease Application

Dielectric grease repels water while protecting metal contacts from corrosion. Apply a thin layer to the exterior of the connector before mating halves together. The grease fills microscopic gaps and prevents moisture migration along the mating surfaces.

Avoid getting grease inside the connector where it contacts the metal pins. The insulating properties interfere with electrical continuity when applied internally. Clean any excess that squeezes out during mating with a lint-free cloth.

For maximum protection, also treat the bulb base contacts with a light dielectric coat. Wedge-type and bayonet-style bulb bases expose metal posts to ambient moisture inside the housing. Proper greasing extends bulb life significantly in wet climate regions.

---

Image source: Bing (Web (fair-use with source credit))

---

Harness Routing and Protection

Wire routing determines whether your new fog lights survive road vibration and suspension articulation. Secure the harness away from moving components using existing clip locations on the fender apron. Running wires across suspension parts guarantees chafing and eventual short circuits.

Use split loom tubing to protect vulnerable harness sections near sharp edges. The corrugated plastic sleeving prevents insulation abrasion from contact with sheet metal corners. Route the protected section through existing grommets whenever possible rather than drilling new access holes.

Ground connection integrity affects performance more than most DIYers realize. Scrape paint and rust from the ground stud contact surface before tightening. Bare metal-to-metal contact ensures proper grounding and prevents voltage drop under load.

A poor ground manifests as dim lighting, flickering output, or complete failure under certain conditions. Testing ground continuity with a multimeter confirms proper bonding before closing up the wheel well. Target resistance below 0.5 ohms between the housing ground stud and clean chassis metal.

Gasket and Seal Verification

Inspect the rubber gasket or foam tape sealing the lens to housing before installation. Old compressed seals lose elasticity and fail to maintain water-tight boundaries. Replacement gaskets cost five dollars and prevent thousands in connector replacements.

Apply a thin bead of automotive silicone sealant to the housing mounting surface before seating the gasket. This secondary seal layer protects against capillary water migration through microscopic surface imperfections. Wipe away excess sealant that squeezes out during assembly immediately.

Verify even compression around the entire lens perimeter after tightening mounting screws. Uneven pressure indicates misaligned brackets or debris trapped in the sealing surface. Improper seal compression creates direct paths for rain and snowmelt penetration.

Maintaining and Optimizing Your Fog Lights After Installation

Fresh fog lights require minimal maintenance but benefit enormously from periodic inspection routines. Six-month checks catch developing problems before they cause complete failures or housing damage. Simple visual inspections and cleaning procedures extend service life dramatically.

Lens clarity directly impacts performance more than bulb wattage increases. Yellowed polycarbonate loses up to sixty percent of light transmission over ten years of UV exposure. Restoration treatments restore visibility without expensive replacement assemblies.

Lens Restoration Procedures

Surface scratches and oxidation dull headlights and fog lamps equally. Start with a thorough wash using automotive soap and a microfiber mitt to remove embedded contaminants. Rinse completely and dry with a clean towel before proceeding to compound application.

For moderate yellowing, use a dedicated plastic headlight restoration kit with progressive grit sands:

• Begin with 800-grit sandpaper wet-sanding to remove oxidized surface layers
• Progress through 1000, 1200, and 1500 grit for increasingly fine scratches
• Apply polishing compound with a foam pad to restore optical clarity
• Finish with UV-protective sealant to delay future oxidation

Aggressive sanding removes material unevenly and creates visible waves in the lens surface. Work methodically through each grit level and inspect frequently under direct sunlight to assess progress. Complete polishing takes approximately thirty minutes per lamp when performed correctly.

Deeper scratches requiring extensive material removal benefit from professional polishing equipment. Rental buffing machines with dedicated plastic pads deliver consistently superior results compared to hand sanding alone. The investment pays for itself within one restoration cycle.

Electrical System Checks

Annual electrical testing prevents unexpected failures during critical driving conditions. Check voltage at the fog light connector with the lamps illuminated and engine running. Normal operating voltage reads between 13.5 and 14.5 volts at the battery terminals under load.

Voltage drops exceeding 0.5 volts indicate excessive resistance in the circuit. Trace the drop location by measuring at successive points from battery to bulb. High resistance typically occurs at corroded connectors, poor grounds, or undersized wiring modifications.

Measure amperage draw to confirm proper bulb operation and wiring capacity. An H11 55-watt bulb draws approximately 4.6 amps at 12 volts. Significant deviation from expected draw suggests bulb degradation or wiring issues requiring investigation.

Beam Pattern Verification

Proper beam alignment prevents glare complaints while maximizing visibility for the driver. Park facing a flat wall at twenty-five feet distance and mark the horizontal and vertical cutoff points. Adjust until the sharp cutoff line sits slightly below headlight height and offset toward the right side.

Aftermarket LED conversions sometimes produce incorrect beam patterns due to different filament positions. Test pattern quality by observing the cutoff sharpness and throw distance on a dark night. Poor pattern distribution creates hot spots and blind zones reducing actual safety benefits.

Professional beam aiming equipment costs rental fees around fifty dollars for weekend projects. DIY methods using measured wall markings provide adequate alignment for most driving conditions. Fine adjustments may require removing the housing and adjusting internal reflector position.

For similar lighting maintenance tasks, review [[How to Replace Low Bean Light on Jeep Cherokee|compatible lighting procedures]] since the diagnostic approaches apply across multiple Jeep models. Shared electrical architecture makes troubleshooting techniques transferable.

Cost Breakdown: What to Expect for Parts and Labor

Budget planning prevents surprise expenses during fog light replacement projects. Costs vary significantly based on part quality choices and whether you tackle the installation yourself. Understanding price ranges helps set realistic expectations before shopping begins.

Parts pricing reflects the tension between OEM reliability and aftermarket value positioning. Cheap assemblies sometimes cost less initially but fail prematurely due to poor seal construction. Mid-range options from reputable brands typically balance quality and affordability effectively.

Parts Cost Ranges

Component prices differ substantially across sourcing channels and quality tiers:

Assembly-only purchases require transferring bulbs and connectors from the old housing. Pre-wired versions include fresh connectors and sometimes upgraded bulbs, simplifying installation considerably. Factor connector condition into your decision since corroded harnesses complicate bare housing installations.

Hidden Costs to Budget For

Projects rarely finish exactly within anticipated spending limits. Budget an additional twenty to thirty percent for unforeseen replacements and consumables:

• Broken clips discovered during liner removal requiring immediate replacement purchases
• Stripped screws necessitating extraction tools or drill bits not originally planned
• Additional electrical tape, zip ties, and protective sleeves discovered during routing
• Contact cleaner and brush supplies for connector maintenance operations
• Temporary lighting solutions if weather delays project completion over multiple days

Time investment represents another significant cost factor for do-it-yourself builders. Most installations complete within forty-five to ninety minutes including cleanup and testing. Professional shop rates range from seventy-five to one hundred fifty dollars hourly depending on geographic location and facility overhead.

When Professional Installation Makes Sense

Complex wiring problems justify professional diagnosis and repair services. Chronic bulb failures pointing to alternator voltage regulation issues require shop equipment to diagnose properly. Sequential electrical faults affecting multiple lighting systems benefit from experienced troubleshooting approaches.

Collision repair scenarios involving bumper removal and realignment exceed typical fog light swap scope. Insurance claims covering accident-related lighting damage should route through professional repair channels. Proper paint matching and fascia adjustment require specialized tools and techniques.

Simple bulb replacements and clear-lens assembly swaps suit confident DIY performers comfortably. Basic hand tool familiarity and willingness to follow step-by-step procedures enables successful completion. Skip professional help unless facing electrical diagnostics or structural repair requirements.

Legal and Safety Considerations for Fog Light Upgrades

Fog light modifications carry legal implications beyond simple bolt-on replacements. State regulations govern permissible colors, brightness levels, and activation timing for auxiliary lighting systems. Federal motor vehicle safety standards establish minimum performance requirements for replacement assemblies.

Understanding compliance requirements prevents citation difficulties and insurance claim complications. Proper beam pattern certification distinguishes street-legal upgrades from decorative off-road accessories. Mixing non-compliant components creates liability exposure during traffic stops and accident investigations.

SAE and DOT Compliance Standards

Federal Motor Vehicle Safety Standard No. 108 governs lighting equipment requirements for highway use. Replacement fog lamps must display SAE or DOT certification marks indicating compliance with performance specifications. Unmarked assemblies sold for off-road use only may fail periodic vehicle inspection requirements in many states.

Beam pattern requirements specify maximum intensity distribution and cutoff characteristics to prevent glare. Aftermarket LED conversions sometimes exceed original Equipment Manufacturer intensity limits causing oncoming driver complaints. Properly engineered replacements maintain comparable or improved pattern quality while meeting federal requirements.

Check certification markings on packaging and housing before purchasing replacement assemblies. Legitimate manufacturers print SAE or DOT symbols prominently on product documentation and physical components. Counterfeit certifications appear on cheap import housings lacking genuine compliance testing history.

State-Specific Regulations

Lighting regulation varies considerably across American jurisdictions affecting installation decisions:

• Some states prohibit blue-tinted bulbs or lenses regardless of beam pattern quality
• Several jurisdictions limit auxiliary light usage to fog, rain, or low-visibility conditions only
• Color restrictions typically mandate white or amber front lighting with specific wavelength limits
• Inspection programs in certain states verify functional lighting during periodic vehicle registration

Research your state’s vehicle code before installing colored accent lighting or high-intensity conversions. Law enforcement officers cite illegal modifications during routine traffic stops affecting insurance premium calculations. Compliance verification documentation proves valuable when disputing citation validity.

Glare Prevention and Social Responsibility

Considerate lighting installation preserves community relations and prevents complaint-driven enforcement. Excessively bright LEDs aimed incorrectly create dangerous conditions for oncoming traffic and pedestrians. Proper beam adjustment and appropriate intensity selection benefit all road users simultaneously.

Position fixtures according to manufacturer mounting specifications rather than maximizing upward throw distance. Lower mounting heights and wider dispersion patterns serve fog conditions better than focused spot beams. Educational materials from lighting manufacturers demonstrate optimal aiming procedures for various vehicle platforms.

Report malfunctioning neighborhood lighting that creates glare hazards through local municipal channels. Community awareness programs addressing improper modification practices reduce enforcement burden on individual citizens. Cooperative problem-solving produces lasting improvements exceeding isolated complaint responses.

For similar safety-focused maintenance work, review [[Why Is My Service Engine Light On in My Jeep Renegade?|common warning indicators]] since lighting system issues sometimes correlate with broader electrical concerns. Shared ground paths connect multiple vehicle systems together, making comprehensive diagnosis worthwhile.

Frequently Asked Questions About Replace Fog Lights

Can I replace just the bulb instead of the whole assembly?

Yes, if your lens is still clear and the housing seal is intact. Bulb-only replacement works when the polycarbonate isn’t yellowed and no water has entered the unit. Check the lens condition first before committing to a full assembly swap.

What size Torx bit do I need for the fog light screws?

You need a T30 Torx socket for the main mounting screws. Some older vehicles may require a T25 if the T30 strips from corrosion. Keep both sizes on hand to handle worst-case scenarios smoothly.

How do I fix a fog light that keeps blowing out?

Chronic bulb failures usually point to voltage fluctuations or poor grounding. Check your charging system output and inspect the ground strap connection for corrosion. Replace damaged wiring sections and clean all contact points before installing new bulbs.

Are aftermarket fog lights as good as Mopar OEM parts?

Quality varies widely among aftermarket brands. Reputable companies like Putco and Depo produce solid replacements, but budget options often use thin plastics and poor seals. Read verified buyer reviews focusing on long-term seal integrity before choosing cheaper alternatives.

What’s the best LED bulb for the 2005 Grand Cherokee fog lights?

H11 LED bulbs with CANBUS decoders work best for this application. Look for units rated around 3000K to 5000K color temperature for optimal fog penetration. Avoid super-bright 6000K+ bulbs that create glare in wet conditions and may fail state inspection requirements.
